Truck-mounted telescopic boom lift K32GAZ

outdoorfor multiple applications

Overview

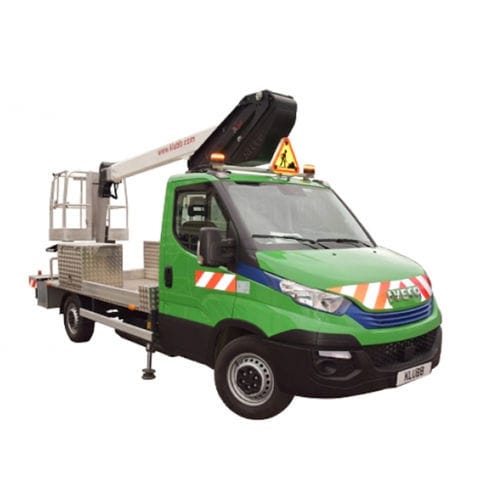

Hydrogen-powered aerial lift mounted on an Iveco Daily ≤3.5 t chassis. The KLUBB K32GAZ is configured for urban operations and delivers up to 35% fuel savings compared with conventional solutions while eliminating the need for AdBlue. The telescopic aluminium boom provides a working height of 12.50 m and a horizontal outreach of 7.30 m without outriggers. All hydraulic hoses and electrical cables are routed inside the boom for protection against branches and external damage.

Model & Capacity

• Brand: KLUBB
• Model: K32GAZ
• Capacity: 120 kg (1 operator) without outriggers; 2-person basket available with outriggers (option)

Standard features

• Engine start/stop control from the basket
• Independent emergency electric pump with full basket controls
• Proportional controls for precise movements
• Safe access to the working platform
• Hoses and cables routed inside the aluminium boom for maximum protection
• Telescopic aluminium boom for optimal stability

Examples of vehicles

• Iveco Daily

Technical Specifications

• Max working height: 12.50 m
• Max working outreach: 7.30 m
• Boom rotation: 360°
• Max working load: 120 kg
• Max platform height: 10.50 m
• Outriggers: no outriggers (standard); outriggers optional for two-person basket
• Basket size: 86 x 72 x 110 cm
• Chassis weight class: ≤ 3.5 T
• Boom: Telescopic aluminium with internal hoses and cables
• Engine: hydrogen
• IPAF category: 1b
• Lifting mechanism: hydraulic

Characteristics / Technical specifications

• Model: K32GAZ
• Working height: 12.50 m
• Platform height: 10.50 m
• Outreach: 7.30 m
• Rotation: 360°
• Max load: 120 kg
• Basket dimensions: 86 x 72 x 110 cm
• Chassis: ≤ 3.5 T (example: Iveco Daily)
• Powertrain: hydrogen
• Boom type: telescopic aluminium with internal routing
• Lifting: hydraulic
