Truck-mounted aerial work platform KL26 GAZ

natural gasexteriorfor multiple applications

Product

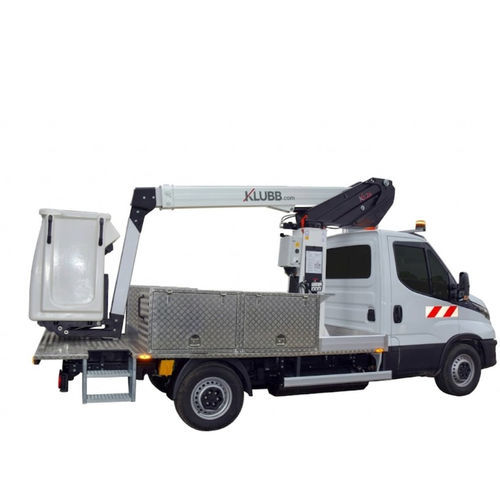

KLUBB KL26 GAZ telescopic aerial platform mounted on a 3.5 t Iveco Daily CNG chassis. Capacity: 120 kg (1 operator); 2-person basket with outriggers optional; standard version without outriggers. Basket size: 86 x 72 x 110 cm.

Overview
The KL26 GAZ combines a compact footprint with the environmental and operating benefits of a CNG powertrain. Benefits include:

• Up to 95% fewer fine particles and 50% less NOx versus Euro VI diesel
• Load capacity comparable to the diesel version
• Fuel savings up to 35%
• Quieter operation
• No AdBlue® required

The optional "Green Pack" permits operation of the aerial platform with the vehicle engine switched off to further reduce fuel consumption and emissions. With 11.80 m working height and 6.80 m outreach, the machine is suited to public lighting, green-space maintenance and municipal applications.

Standard features

• Engine start/stop from basket
• Independent emergency electric pump with full basket controls
• Proportional controls
• Secure access to the working platform
• Hoses and cables routed inside the boom for protection
• Aluminium boom for optimum stability

Examples of vehicles

• IVECO DAILY 35S14 NV

Technical specifications

• Model: KL26 GAZ
• Working height: 11.80 m (38’90”)
• Working outreach: 6.80 m (22’40”)
• Boom rotation: 360°
• Maximum working load: 120 kg
• Maximum platform height: 8.30 m (27’30”)
• Outriggers: no outriggers (2-man basket with outriggers optional)
• Basket dimensions: 86 x 72 x 110 cm
• Chassis max weight: ≤ 3.5 t
• Arm type: Telescopic
• Engine fuel: Natural gas (CNG)
• IPAF category: 1b
• Lifting mechanism: Hydraulic
