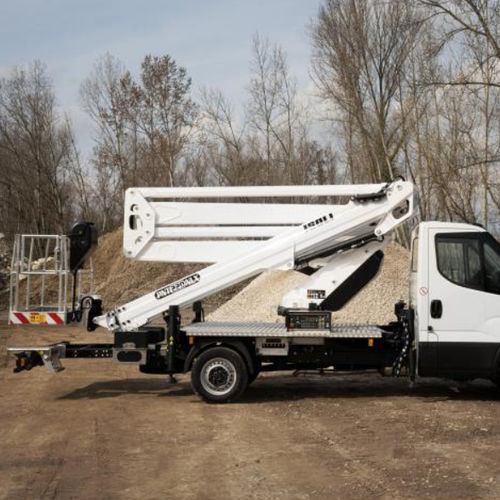

Truck-mounted articulated boom lift PNT 220 NLX

hydraulicdieseloutdoor

Description
The PNT 220 NLX is a truck-mounted articulated boom lift with a 22 m maximum working height, designed for painting, tree pruning, roofing, carpentry and façade cleaning. Its simplified control panel facilitates operation while H-shaped extendable outriggers reduce the footprint on the road. The platform is intended for work at heights up to 21.8 m with a maximum outreach of 11.20 m and a basket capacity of 250 kg, enabling transport of tools and equipment. Its versatility and ease of use make it well suited to rental fleets.

Technical specifications

• Brand: KLUBB
• Model: PNT 220 NLX
• Max. working height: 22 m (design height 21.8 m)
• Max. working outreach: 11.20 m
• Boom rotation: 360°
• Max. working load: 250 kg
• Max. platform height: 20 m
• Outriggers: 4 H-shaped, front extendable
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 t
• Arm type: Articulated
• Engine: Diesel
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Operators: 2

Standard features

• Simplified control panel
• Engine stop/start from the basket
• Four stabilisation modes
• Assisted turret and basket centring
• Hour meter
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to the work platform
• Hose conveyor chain inside the mast for protection
• Double stabilisation: stabilisers within the footprint and front extendable stabilisers
• Rigid PVC protection for upper controls

Options

• Signalling (beacons, flashing lights, marking bands)
• Insulated low-voltage basket or tubular aluminium basket
• 220 V circuit in the basket
• Storage boxes
• Aluminium side rails
• Tool holder in the basket
• Extended warranty
• Maintenance package

Examples of vehicles

• Iveco Daily (wb: 3750 mm)
• Isuzu M21 (wb: 2760 mm)

Green Pack
The entire range can be fitted with the "Green Pack" option allowing platform operation with the vehicle engine switched off.
