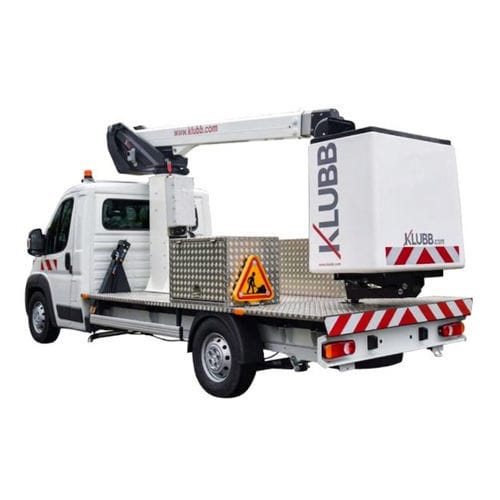

Wheeled telescopic boom lift K32

truck-mountedoutdoorfor multiple applications

Product overview
Designed for work at height such as maintenance of public lighting and telecom networks. The K32 features a telescopic arm reaching a working height of 12.50 m and a horizontal outreach of 7.30 m without stabilizers. Capacity: 120 kg (1 operator). Option available: 2-person basket with outriggers. All hydraulic hoses and electrical cables are routed inside the aluminium mast to protect them from external damage.

Key figures

• Working height: 12.50 m
• Working outreach (horizontal offset): 7.30 m
• Boom rotation: 360°
• Max. working load: 120 kg (1 operator)

Standard features

• Engine start and stop from basket
• Independent emergency electric pump with full basket controls for enhanced safety
• Proportional controls
• Secure access to the working platform
• Hoses and cables integrated inside the boom for maximum protection
• Aluminium boom for optimum stability

Examples of vehicles

• Renault Maxity
• Renault Master
• Nissan Cabstar
• Iveco Daily 35S
• Mercedes Sprinter
• Volkswagen Crafter
• Ford Transit
• Fiat Ducato

Green Pack
The range can be equipped with the ecological Green Pack option allowing operation with the vehicle engine off.

Technical specifications

• Max. working height: 12.50 m (approx. 41.0 ft)
• Max. working outreach: 7.30 m (approx. 23.9 ft)
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 10.50 m (approx. 34.5 ft)
• Outriggers: no outriggers (optional outriggers for 2-person basket)
• Basket size: 86 x 72 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Telescopic
• Engine: Gasoline
• IPAF category: 1b
• Lifting mechanism: Hydraulic
