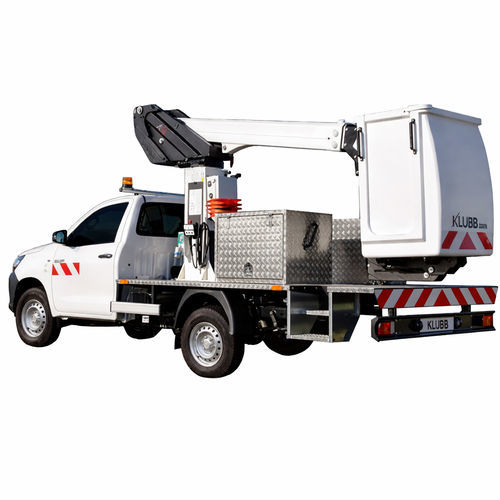

Mobile telescopic boom lift KL26 HiLux

truck-mountedbattery-poweredgas

Overview
The K26 telescopic aerial platform mounted on a Toyota HiLux pick-up is designed to work on difficult surfaces. This pick-up-mounted telescopic boom can reach a working height of 11.30 m with an outreach up to 5.20 m. Its aluminum telescopic boom provides corrosion resistance for operation in extreme weather and rough terrain, making the model suitable for off-road applications.

Model and capacity

• KLUBB model: K26 Hilux
• Capacity: 120 kg — 1 operator (no outriggers); 200 kg — 2 persons (with outriggers)

Key data

• Working height: 11.30 m
• Maximum outreach / Offset: 5.20 m
• Boom rotation: 360°

Technical specifications

• Max. working height: 11.30 m (37'07")
• Max. working outreach: 5.20 m (17'06")
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 9.50 m (31'16")
• Outriggers: no outriggers or 2 A-framed
• Basket size: 72 x 86 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Telescopic (aluminum)
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic

Standard features

• 1-person basket (120 kg) without outriggers
• 2-person basket (200 kg) with outriggers
• Engine stop / start in basket
• Hour counter
• Alternate circuit on independent electric pump with all functions in the basket
• Aluminum boom for optimal stability
• Proportional controls on all movements
• Secure access to the work platform
• Rigid protective cover for controls in high position

Options

• Signalling equipment (tri-flash, 2 flashing lights, strips)
• 220 V circuit in the aerial platform
• Reinforced suspensions
• Low voltage insulated basket with full opening
• Interior fittings
• Ladder rack
• Rotating basket
• Green Pack: operation of the aerial platform on battery, with engine off

Green Pack
The whole range of aerial work platforms can be equipped with the ecological option Green Pack allowing the platforms to operate with the vehicle engine off.

Characteristics / Technical specifications

• Model: KL26 (K26 Hilux)
• Working height: 11.30 m
• Max outreach: 5.20 m
• Rotation: 360°
• Max working load: 120 kg
• Platform height: 9.50 m
• Basket size: 72 x 86 x 110 cm
• Outriggers: none or 2 A-framed
• Chassis class: ≤ 3.5 T
• Arm type: Telescopic (aluminum)
• Engine: Gas
• Lifting mechanism: Hydraulic
• IPAF category: 1b
