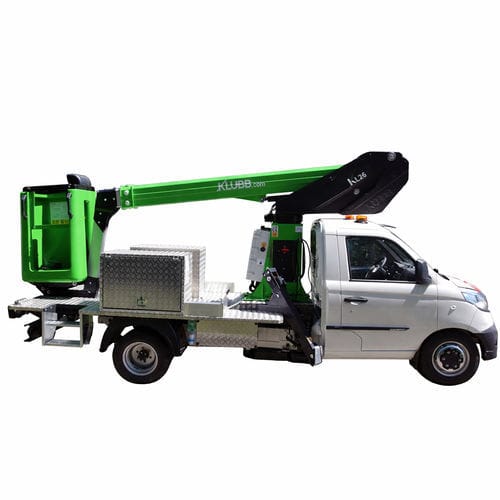

Mobile telescopic boom lift KL26 NP6

truck-mountedgasoline engineelectric

Overview
The KL26 telescopic aerial platform mounted on a Piaggio Porter NP6 is a dual‑fuel capable, compact vehicle‑mounted platform designed for work at heights up to 10.70 m with a maximum outreach of 6.00 m. Based on the Euro 6 Multitech 1.5 L 4‑cylinder engine for dual‑fuel chassis versions (petrol/LPG and petrol/NGV), the unit is available in an electric platform configuration and recommended for advertising installers and maintenance of public lighting and overhead networks.

Standard features

• Independent emergency manual pump with all platform functions accessible from the basket
• Proportional controls for smooth operation
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for maximum protection
• Aluminium boom for optimum stability

Options

• Signalling devices
• 220 V electric socket in basket
• Water/air circuit in basket
• Fully opening insulated basket
• Side chests
• Side panels

Technical specifications

• Max. working height: 10.70 m (32'80")
• Max. working outreach: 6.00 m (19'68")
• Boom rotation: 360°
• Max. working load: 200 kg
• Max. platform height: 8.70 m (28'54")
• Outriggers: 2 A‑Frame outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Telescopic
• Engine: Electric (platform configuration); dual‑fuel chassis versions available (petrol/LPG, petrol/NGV) with 1500 cm³ 4‑cylinder Euro 6 Multitech engine
• IPAF category: 1b
• Lifting mechanism: hydraulic

Technical summary

• Model: KL26 NP6
• Application: advertising, public lighting and overhead network maintenance
• Configuration: vehicle‑mounted on Piaggio Porter NP6
