Truck-mounted articulated boom lift PNT 210 JD4

electro-hydraulichydraulicdiesel

Overview

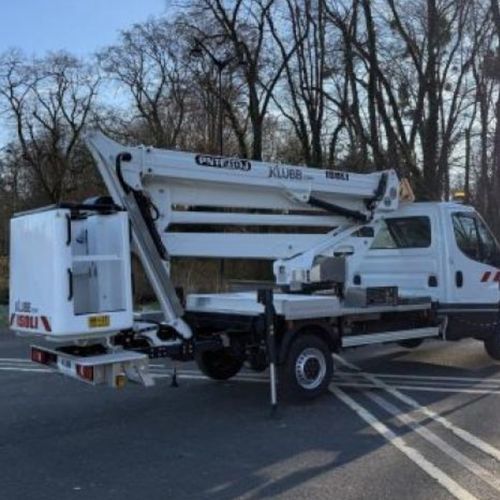

The PNT 210JD4 is an articulated aerial work platform mounted on an Iveco Daily 3.5-ton chassis cab (wheelbase 3750 mm). Designed for maintenance, construction and industrial access tasks, it provides controlled positioning at height. The unit delivers a 20.50 m working height (platform floor 18.50 m) and up to 9.60 m outreach for operations around obstacles and façades.

Key options / quick data

• Working height: 20.50 m (platform floor height 18.50 m)
• Maximum outreach: 9.60 m (spec text) / 10.00 m (technical spec)
• Rotation: turret 360°, basket rotation ±90°
• Rated capacity: up to 230 kg on standard conditions; up to 250 kg noted depending on outreach

Standard features

• Engine start/stop from the nacelle
• Hour meter
• Emergency circuit on manual pump
• Proportional electro-hydraulic controls for all movements
• Secure access to the work platform
• 220 V circuit in the basket
• Rotating basket 2 × 90°
• Pendulum arm: 120°
• Conveyor chain for hoses inside the boom for optimal protection
• Dual stabilisation: stabilizers inside the vehicle footprint and extendable front stabilizers for maximum offset
• Rigid PVC protection for upper control area
• Hydraulically extendable stabilizers, adjustable to required dimensions and offset

Examples of compatible vehicles

• Nissan Cabstar (wheelbase 3400 mm)
• Renault Maxity (wheelbase 3400 mm)

Technical specifications

• Max. working height: 20.50 m (67'25")
• Max. working outreach: 10.00 m (32'80")
• Boom rotation: 360°
• Max. working load: 230 kg
• Max. platform height: 18.50 m (60'69")
• Outriggers: 4 HE-H shaped
• Basket size: 125 × 75 × 110 cm
• Chassis category: ≤ 3.5 t
• Arm type: articulated
• Engine: diesel
• IPAF category: 1b
• Lifting mechanism: hydraulic
• Operators: 2
