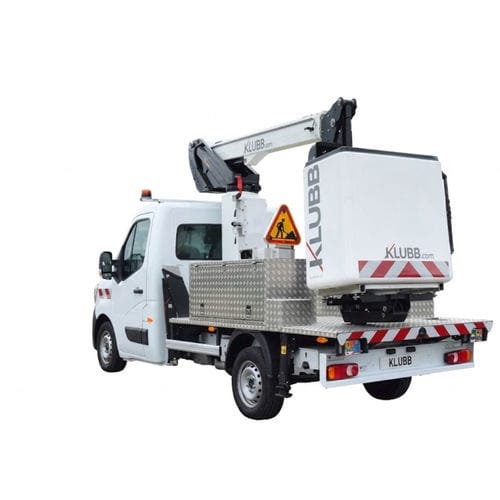

Mobile telescopic boom lift KL38P

truck-mountedoutdoor

Overview
This aerial work platform provides a 13.20 m working height mounted on a light truck chassis. It features a telescopic boom with an articulated fly jib and an insulated option designed for safe operations near power lines. The fly jib helps to bypass high obstacles such as tree branches or cables. The platform is designed for two operators (200 kg) and can be outfitted with storage boxes and side compartments for tools and equipment.

Key data shown on page

• Working height: 13.20 m
• Offset: 7.30 m (7.80 m also mentioned in product text)
• Rotation: 360°
• Capacity: 200 kg, 2 operators

Standard specifications

• Engine start/stop from the basket
• Hour meter
• Emergency circuit on independent electric pump with all functions in the basket
• Aluminum top mast for optimal stability
• Proportional controls on all movements
• Secure access to the work platform
• Rigid protective cover for controls in upper position

Options

• Signalling devices
• 220 V socket in basket
• Reinforced suspensions
• Trailer hook
• Fully opening insulated basket
• Custom vehicle fit-outs (boxes, panels)
• Side ladder rack
• Aluminum side panels
• Aluminum trunks
• Green Pack: basket operation on battery with engine off
• Basket for 2 persons with stabilizers and controls in the basket

Technical specifications

• Brand: KLUBB
• Model: KL38P
• Working height: 13.20 m
• Offset: 7.30 m (7.80 m also mentioned)
• Rotation: 360°
• Working capacity: 200 kg (2 operators)
• Boom type: telescopic with fly jib
• Insulated boom available (for work near power lines)
• Mounting: light truck chassis
• Typical applications: network works, installation and maintenance of public lighting and similar utility tasks
• Available ecological option: Green Pack (basket operation on battery with engine off)
