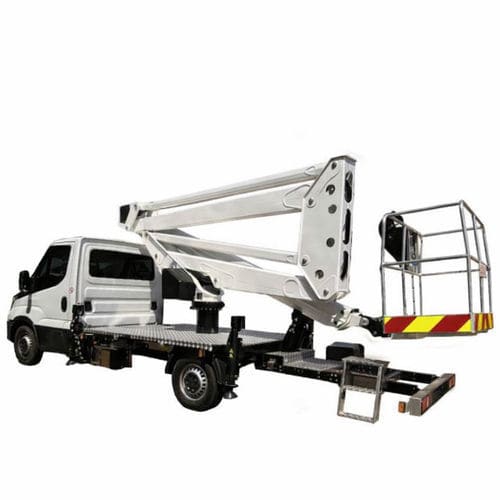

Truck-mounted articulated boom lift PNT 240 AF

hydraulicdieseloutdoor

Overview
The PNT 240AF is an articulated truck-mounted aerial platform designed to access confined or obstructed work areas. Fitted with hydraulic outriggers and a telescopic articulated boom with a 360° rotating basket, it delivers a working height of 24 m and a lateral outreach up to 12 m. Typical applications include street lighting maintenance, seasonal decorations and tree pruning. The basket supports up to 250 kg, allowing operators to carry tools and equipment.

Key parameters

• Working height: 24 m
• Outreach (offset): 12 m
• Boom rotation: 360°
• Platform capacity: 250 kg

Technical description

• Max. working height: 24 m (74'7")
• Max. working outreach: 12 m (39'3")
• Boom rotation: 360°
• Max. working load: 250 kg
• Max. platform height: 22 m
• Outriggers: 4 H outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: < 3.5 t
• Arm: Telescopic articulated
• Engine: Diesel
• IPAF category: 1b
• Lifting mechanism: Hydraulic

Examples of vehicles

• Iveco Daily (wb 3750 mm)
• Isuzu M21 (wb 2760 mm)

Standard features

• Engine stop/start control in the basket
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to the work platform
• Conveyor chain for hoses inside the mast for protection
• 220 V supply in the basket
• Rigid PVC protection for the upper controls

Options

• Signaling kit (gyro and triflash)
• Drop-side (folding side panel)
• Tool chests
• High-level protection
