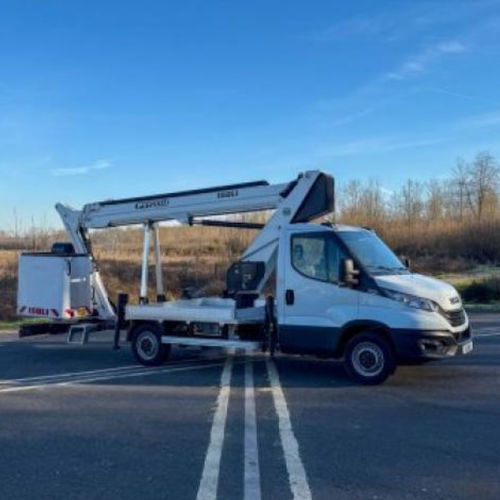

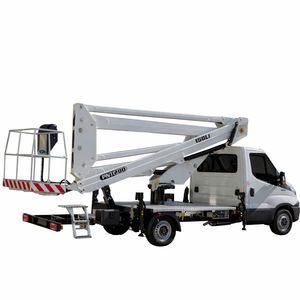

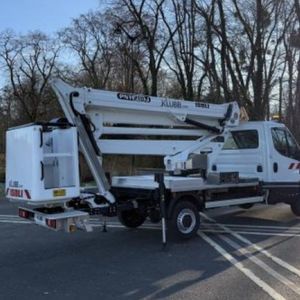

Truck-mounted articulated boom lift PT 200JE

van-mounteddieseloutdoor

Overview
The PT 200 JE is an articulating aerial platform designed to access confined or complex work areas using its articulating jib. With a working height of 20 metres and an outreach up to 13 metres, it suits rental fleets, public lighting maintenance, seasonal decoration installation and arboriculture. Four hydraulic stabilisers combined with the HE-H multi-stabilisation system provide stable set‑up on uneven or cluttered ground. The basket accepts two operators and a maximum load of 300 kg (270 kg on fibre surfaces), enabling tools and equipment to be taken into the work area safely. Compact, precise and versatile, the PT 200 JE is adapted for tasks requiring reach and maneuverability.

Primary product data

• KLUBB Model: PT 200 JE
• Capacity: 300 kg (270 kg on fibre surfaces)
• Working Height: 20 m
• Outreach (up to): 13 m (page text) / Max. working outreach listed as 12 m in technical specs
• Boom: Telescopic and jib (articulating jib)
• Rotation: 360°
• Stabilisers: 4 HE-H with HE-H multi-stabilisation system
• Basket size: 125 x 75 x 110 cm
• Operators: 2
• Engine: Diesel

Options / quick indicators

• Working Height : 20
• Offset : 12
• Rotation : 360

Standard features

• Nacelle engine stop/start
• 2 stabilisation modes
• Power-assisted turret and basket centring
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to work platform
• Conveyor chain for hoses inside the mast for optimum protection
• Rigid PVC protection for overhead controls
• 220V circuit in nacelle

Examples of vehicles

• Iveco Daily 35S
• Isuzu M21

Green option
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.

Technical specifications

• Max. working height : 20 m (65'1″)
• Max. working outreach : 12 m (39'7″)
• Boom rotation : 360°
• Max. working load : 300 Kg (270 Kg on fibre surface)
• Max. platform height : 18 m (59'5″)
• Outriggers : 4 HE-H
• Basket size : 125 x 75 x 110 cm
• Chassis weight : ≤ 3.5 T
• Arm : Telescopic and jib
• Engine : Diesel
• IPAF category : 1b
• Lifting mechanism : hydraulic
• Operators : 2
