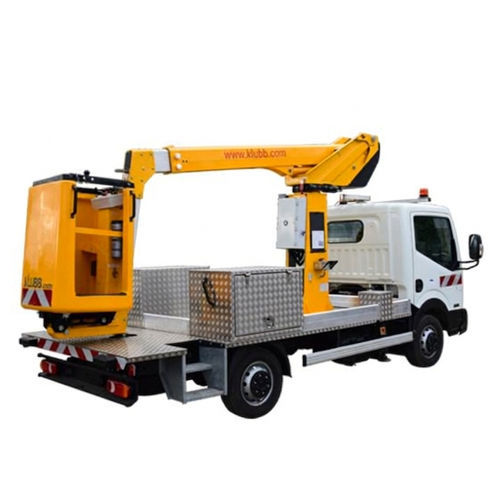

Truck-mounted telescopic boom lift KL26

hydraulicoutdoorfor trucks

Overview
The K26 is a compact carrycot-type telescopic aerial platform designed for confined urban and roadside operations. It is compatible with light truck chassis such as Renault Maxity, Nissan Cabstar, Mercedes Sprinter and others. The unit delivers a maximum working height of 11.80 m and a maximum lateral outreach of 6.80 m. The K26 is particularly suited to advertising installers, public lighting maintenance and overhead network works. Higher-reaching models are available in the range.

Model and capacity
Model: K26
Capacity: 120 kg (1 operator) in standard configuration without outriggers. Optional two-person basket available with outriggers.

Standard features

• Engine start and stop from the basket
• Independent emergency electric pump with full basket controls
• Proportional controls for precise movements
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for maximum protection
• Aluminium boom for optimum stability

Examples of vehicles

• Renault Maxity
• Renault Master
• Nissan Cabstar
• Iveco Daily
• Mercedes Sprinter
• Volkswagen Crafter
• Ford Transit
• Fiat Ducato

Recommended use
Advertising installation, street lighting maintenance and operations on overhead networks.

Technical specifications (excerpt)

• Max. working height: 11.80 m
• Max. working outreach: 6.80 m
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 8.30 m
• Outriggers: no outriggers (outriggers available as option)
• Basket size: 86 x 72 x 110 cm
• Chassis class: ≤ 3.5 T
• Arm type: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
