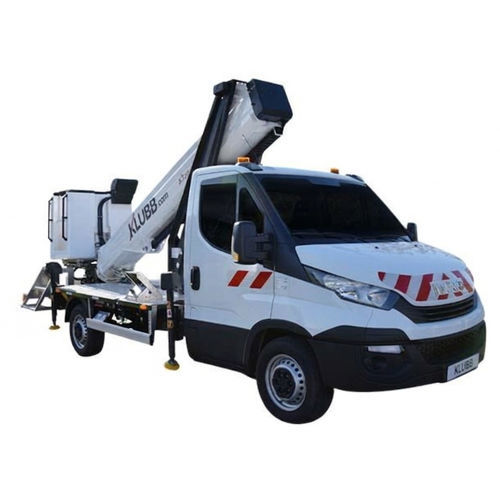

Wheeled telescopic boom lift KT20R

truck-mountedhydraulicgas

Product overview
Chassis-mounted telescopic aerial platform KLUBB KT20R with a maximum working height of 20.60 m and a maximum outreach of 12.50 m. Capacity 300 kg (up to 3 operators). Fitted with 4 extendable H-frame outriggers to improve ground grip and allow configurations that reduce road occupation. Options include signaling kit (gyro and triflash), drop-side, storage chests and high-level protection. Designed to optimise total cost of ownership and operational performance.

Standard features

• Engine start/stop from the basket
• Independent emergency manual pump with full basket controls for maximum safety
• Proportional controls
• Hoses and cables routed inside the boom for maximum protection
• Double stabilisation:
  • Outriggers in template for reduced road occupation (reduced outreach)
  • Outriggers extendable at front, left or right for full outreach
• Aluminium boom for optimal stability
• Automatic stabilisation (top and bottom)
• Home function with automatic stabiliser lift

Examples of vehicles

• IVECO DAILY (wheelbase 3750 mm)

Technical Specifications

• Max. working height: 20.60 m (67'7")
• Max. working outreach: 12.50 m (41'10")
• Boom rotation: 420°
• Max. working load: 300 kg (up to 3 operators)
• Max. platform height: 18.60 m (61'0")
• Outriggers: 4 extendable H-frame outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis class: ≤ 3.5 T
• Arm type: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
