Mobile telescopic boom lift PT 180 E

wheel-mountedtruck-mountedvan-mounted

Overview

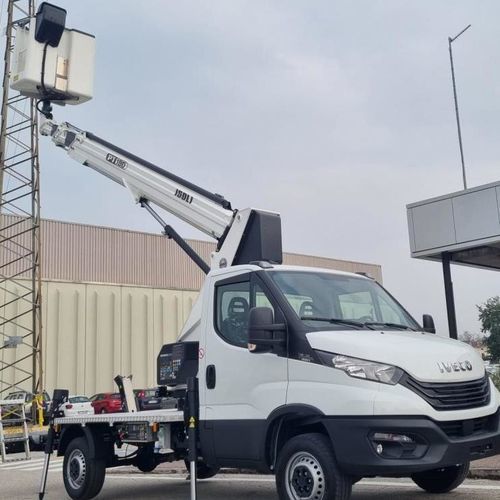

The KLUBB PT180 telescopic aerial platform mounted on an Iveco Daily chassis delivers a working height of 18.5 m, a maximum outreach of 12.5 m and a platform capacity of 300 kg. Four H-H hydraulic outriggers provide stability on varied ground while a chassis weight under 3.5 t keeps the vehicle within the 3.5-tonne class for unrestricted mobility. Suitable for arboriculture, urban maintenance and façade operations, the unit increases job versatility and fleet productivity.

Key product data

• Model: KLUBB PT180
• Capacity: 300 kg
• Working height: 18.5 m
• Max outreach: 12.5 m
• Rotation: 360°

Standard features

• Engine stop/start control from the platform
• Assisted turret and basket centering
• Emergency circuit with manual pump
• Proportional controls on all movements
• Secured access to the work platform
• Internal conveyor chain for hose protection inside the mast
• Rigid PVC protection for upper position controls
• Four stabilisers, two front extendable
• 220 V outlet in the platform

Examples of compatible vehicles

• Iveco Daily
• Isuzu M21

Green option
The range can be equipped with the ecological "Green Pack" option allowing platform operations with the vehicle engine switched off.

Technical specifications

• Max working height: 18.5 m
• Max working outreach: 12.5 m
• Boom rotation: 360°
• Max working load: 300 kg
• Max platform height: 16 m
• Outriggers: 4 HE-H outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 t
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
