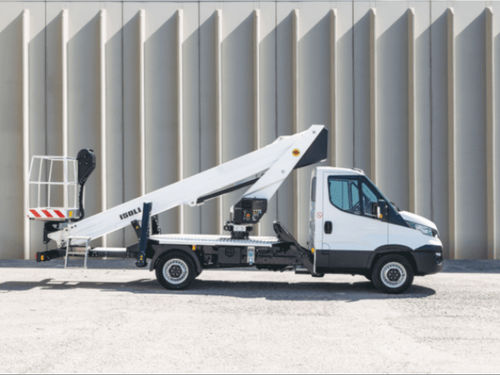

Truck-mounted telescopic boom lift PT 200 HE-H

gasoutdoor

Overview The PT 200E is a telescopic boom lift designed to reach a working height of 20 metres with a double-telescopic arm for improved accessibility in confined or obstructed areas. Its HE-H multimode stabilisation lets the front stabilisers be positioned asymmetrically to prioritise either compact footprint or maximum performance, adapting to site constraints. With a maximum outreach of 13 m and a rotating 360° basket rated for 300 kg, the PT 200E is suitable for rental fleets and tasks such as street lighting maintenance, seasonal installations and tree pruning.

Standard features

• Engine stop and start in basket
• Hour counter
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to the work platform
• Conveyor chain for hoses inside the mast for optimum protection
• Rigid PVC protection of the controls at the top station
• 220 V circuit

Examples of vehicles

• Iveco Daily 35S
• Isuzu M21

Technical specifications

• Max. working height: 20 m (65'1")
• Max. working outreach: 13 m (42'5")
• Boom rotation: 360°
• Max. working load / Capacity: 300 kg
• Max. platform height: 18 m (59'5")
• Outriggers: Four HE-H outriggers (HE-H multimode stabilisation)
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: telescopic (double telescope)
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: hydraulic
• Offset: 12.50
