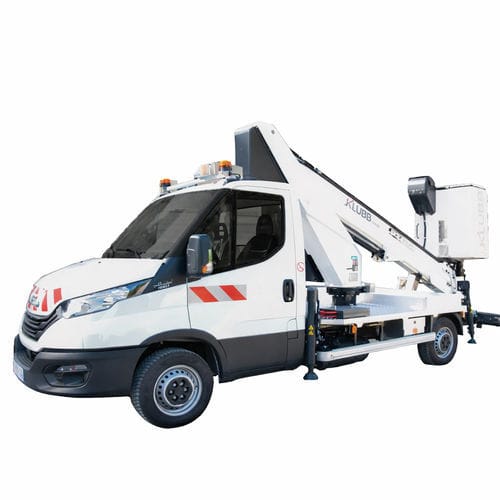

Truck-mounted telescopic boom lift PT160E

gasoutdoorfor trucks

Product overview
The PT160E is a chassis-mounted telescopic aerial work platform featuring a 16 m working height and a 10.50 m outreach. KLUBB’s new range of chassis-mounted aerial platforms is engineered for operational efficiency, safety and ease of maintenance. This unit is supplied with four H outriggers to maximize ground stability and improve site deployment. Available options include a signaling kit with gyro and triflash, drop-sides, tool chests and enhanced protection. The platform is compatible with chassis such as Iveco Daily and Isuzu M21.

Main features

• Working height: 16 m (stated)
• Offset / outreach: 10.50 m
• Rotation: 360°
• Maximum platform load / capacity: 300 kg
• Four H outriggers for stability
• Telescopic arm
• Engine: Gas
• IPAF category: 1b

Standard features

• Engine stop and start from the basket
• Assisted turret and basket centering
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to the work platform
• Conveyor chain for hoses inside the mast for optimum protection
• Rigid PVC protection of the controls at the top station
• 220 V circuit in basket

Examples of compatible vehicles

• Iveco Daily
• Isuzu M21

Green option
The range can be equipped with the ecological "Green Pack" option enabling operation with the van engine switched off.

Multimedia
Product images and a product video are available illustrating the PT160E aerial platform and its working envelope.

Technical specifications

• Max. working height: 16 m (52'9")
• Max. working outreach: 10.50 m (34'4")
• Boom rotation: 360°
• Max. working load: 300 kg
• Max. platform height: 14 m (45'9")
• Outriggers: Four H outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: hydraulic
