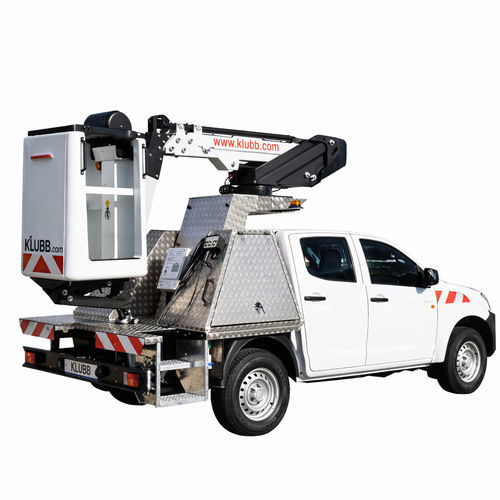

Mobile telescopic boom lift K20 D-MAX

wheeledtruck-mountedhydraulic

Overview
The KLUBB K20 D-MAX on an Isuzu D-Max is a compact telescopic aerial platform with a remote turret, designed for operations in confined or hard-to-reach areas such as urban streets, deserts and mountainous sites. Typical applications include public lighting maintenance, CCTV installation, traffic signal servicing and telecommunications works. The aluminium telescopic boom provides stability while internal routing of the conveyor chain and extension cylinders improves component protection and service life. Fully hydraulic operation simplifies maintenance and field servicing.

Main information

• Mounted on 10 m bucket truck chassis (32'10")
• Model: KLUBB K20 D-MAX
• Basket capacity: 120 kg (1 operator)
• Note: vehicle configuration may allow transport of up to 5 persons depending on local regulations and specific build

Standard features

• Engine start/stop from basket
• Independent emergency electric pump with full basket controls for maximum safety
• Proportional controls for precise movements
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for maximum protection
• Aluminium telescopic boom for optimum stability

Vehicle examples

• ISUZU D-MAX

Technical specifications

• Max. working height: 10.30 m (33'10")
• Max. working outreach: 4.80 m (15'9")
• Boom rotation: 420°
• Max. working load: 120 kg
• Max. platform height: 8.30 m (27'3")
• Outriggers: none
• Basket dimensions: 86 x 72 x 110 cm
• Chassis weight category: ≤ 3.5 T
• Arm type: Telescopic aluminium boom
• Power: Gas engine
• IPAF category: 1b
• Lifting mechanism: Hydraulic
