Mobile telescopic boom lift KAT42L
truck-mounteddieseloutdoor

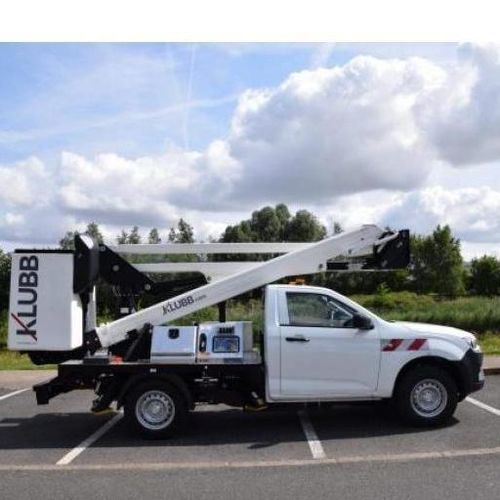

Mobile telescopic boom lift - KAT42L - KLUBB - truck-mounted / diesel / outdoor
Mobile telescopic boom lift - KAT42L - KLUBB - truck-mounted / diesel / outdoor
Mobile telescopic boom lift - KAT42L - KLUBB - truck-mounted / diesel / outdoor - image - 2
Mobile telescopic boom lift - KAT42L - KLUBB - truck-mounted / diesel / outdoor - image - 3
Mobile telescopic boom lift - KAT42L - KLUBB - truck-mounted / diesel / outdoor - image - 4
Mobile telescopic boom lift - KAT42L - KLUBB - truck-mounted / diesel / outdoor - image - 5
Add to favorites
Compare this product

Characteristics

Portability
mobile, truck-mounted
Motor type
diesel
Applications
rough terrain, outdoor
Working height

Max.: 15 m
(49'02" )

Min.: 14.5 m
(47'06" )

Load

Max.: 240 kg
(529.1 lb)

Min.: 120 kg
(264.6 lb)

Description

Product overview
For working at height on rough terrain, the KAT42 L telescopic boom lift mounted on a pickup truck chassis combines mobility and compact dimensions. It reaches a working height of 14.50 m with a lateral outreach of 6.25 m. The boom uses an anti-corrosion aluminium arm for extended durability in demanding environments. The platform is available on multiple pickup chassis, including Toyota. The basket can be configured for one operator (up to 120 kg without deploying stabilizers) or two operators (total 240 kg, stabilizers required).

Key data (option panel)
  • Working height: 15.00 m
  • Offset: 6.50 m
  • Rotation: 360°

Technical specifications
  • Max. working height: 14.50 m (47'57")
  • Max. working outreach: 6.25 m (20'50")
  • Boom rotation: 360°
  • Max. working load: 240 Kg
  • Max. platform height: 12.50 m (41'01")
  • Outriggers: 4 A-shaped
  • Basket size: 125 x 75 x 110 cm
  • Chassis weight: ≤ 3.5 T
  • Arm: Telescopic
  • Engine: Diesel
  • IPAF category: 1b
  • Lifting mechanism: hydraulic
  • Operators: 2

Standard features
  • Two-person basket with stabilizers (200 kg)
  • Engine start/stop control in the basket
  • Hour meter
  • Backup circuit with independent electric pump and all controls available from the cab for maximum safety
  • Latest aluminium mast for optimal stability
  • Proportional controls on all movements
  • Secure access to the work platform
  • Rigid protective cover for the upper controls

Examples of vehicles
  • Toyota Hilux 4X4
  • Isuzu D-Max 4X4

Green Pack
The range can be fitted with the ecological "Green Pack" option, allowing platform operation with the vehicle engine switched off.

Characteristics / technical specifications
  • Max. working height: 14.50 m (47'57")
  • Max. working outreach: 6.25 m (20'50")
  • Boom rotation: 360°
  • Max. working load: 240 Kg
  • Max. platform height: 12.50 m (41'01")
  • Outriggers: 4 A-shaped
  • Basket size: 125 x 75 x 110 cm
  • Chassis weight: ≤ 3.5 T
  • Arm: Telescopic
  • Engine: Diesel
  • IPAF category: 1b
  • Lifting mechanism: hydraulic
  • Operators: 2
