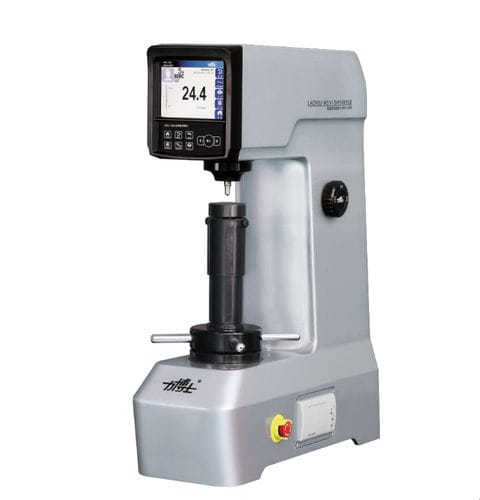

Rockwell hardness tester HRS-150S

benchtopfor non-ferrous metalsdigital display

Product overview
The HRS-150S digital Rockwell hardness tester is an automated precision testing instrument. Its electric loading/unloading mechanism and color touchscreen control suit laboratory and production environments that require stable, repeatable hardness measurements. The instrument integrates data processing and multi-standard hardness conversion functions to support quality management workflows.

Product advantages

• Automated closed-loop testing for repeatable operation and simple workflow integration.
• Coverage of multiple Rockwell scales and multi-standard conversion to address diverse testing requirements.
• Dual operation via a large touchscreen and physical buttons for flexible and reliable control.
• Built-in data management, printing and statistical functions to support inspection and traceability.

Detailed specifications
Initial Rockwell scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Initial test force: 98.07 N (10 kgf)
Total test forces: 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf)
Load holding time: adjustable 0–60 s
Display: 5.6-inch resistive touchscreen, resolution 640×480
Hardness value resolution: 0.1 HR
Force application: automatic loading, load holding and unloading
Hardness value conversion: HRA, HRB, HRC, HRE, HRF, HRG, HRK, HRH, HR15T, HR30T, HR45T, HR15N, HR30N, HR45N, HV0.1, HV1, HV5, HV10, HV15, HV30, HV50, HBS2, HBS10, HBS30, HBW, HK0.5, HK1, HLD, HS, MPa
Conversion standards: ASTM_E140-12be, ISO_18265-2013, GB/T 1172
Language options: Simplified Chinese, Traditional Chinese, English, French, German, Russian, Portuguese, Spanish, Korean, Japanese, Italian, Thai
Instrument correction range: -10.0 HR to +10.0 HR; step 0.1 HR
Data processing: storage for 200 individual records and 100 grouped records; functions for viewing individual records and data analysis
Print configuration: built-in printer
Maximum specimen height: 100 mm with lead screw guard installed; 170 mm without guard
Distance from indentation center to machine wall: 118 mm
External dimensions: 500×225×660 mm
Net weight: 68 kg
Implementation standards: GB/T 230, ISO 6508, ASTM E18

Features / Technical specifications

• Model: HRS-150S
• Product type: Digital Rockwell hardness tester
• Electric loading/unloading with color touchscreen control
• Multiple Rockwell scales supported (HRA, HRB, HRC, etc.)
• Multiple hardness conversions supported (Vickers, Brinell, various Rockwell scales, MPa, etc.)
• Conversion standards supported: ASTM, ISO, GB/T
• Display: 5.6-inch resistive touchscreen (640×480)
• Resolution: 0.1 HR
• Test forces: initial 98.07 N (10 kgf); selectable total forces 60 kgf / 100 kgf / 150 kgf
• Load holding time adjustable 0–60 s; automatic loading/holding/unloading; closed-loop testing
• Multi-language interface
• Instrument correction range: -10.0 HR to +10.0 HR, step 0.1 HR
• Data storage: 200 individual records + 100 grouped records; data viewing and analysis functions
• Built-in printer for on-site printing
• Specimen max height: 100 mm (with guard) / 170 mm (without guard)
• Indentation center to machine wall distance: 118 mm
• Dimensions and weight: 500×225×660 mm, net weight 68 kg
• Standards: GB/T 230, ISO 6508, ASTM E18
