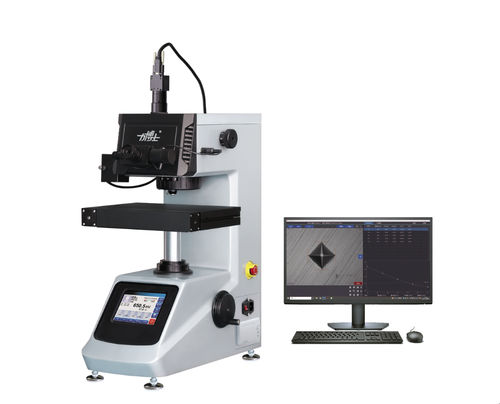

Knoop/Vickers hardness tester BHV-1000TPTA

micro Vickersbenchtopfor thin sheet material

Product Overview
This image-processing micro-Vickers hardness tester (model BHV-1000TPTA) integrates mechanical, optical and computer technologies. It supports automatic objective and indenter turret switching, automatic input of measured diagonal lengths and full automation of hardness calculation, data storage, display, printing and hardness conversion. The instrument is designed for measuring Vickers or Knoop hardness on small metal parts, thin sections, foils, case-hardened layers, electroplated coatings, nitrided/carburized/cyanided layers and non-metallic specimens such as jewelry, ceramics and glass. It delivers high measurement accuracy, reliable repeatability, very small indentations and non-destructive testing of samples.

Key Capabilities

• Automated objective and indenter turret switching for repeatable testing workflows.
• Automatic loading/holding/unloading with computer-based image measurement for automatic hardness reading.
• High-precision automated XY stage allowing custom indenter-path patterns and programmable test sequences.
• Automatic carburized layer depth calculation and electronic report generation; test results and images can be transmitted over a network.

Product Advantages

• Software-integrated operation with intuitive mouse controls for simplified use.
• Integrated plug-and-play wiring harness for simplified installation and reduced setup time.
• Electric adjustment of the worktable via software for precise horizontal alignment.
• Dual image/video mode switching with seamless real-time focus control.
• Panoramic scanning to generate an overview of the specimen surface and rapidly locate test points.
• One-click surface correction with six correction options to reduce measurement errors on non-flat samples.
• Multidimensional test-data analysis: three hardness conversion methods, real-time result curves and statistical analysis.
• Customizable test reports and reconstruction of the testing process with accompanying indentation images.
• Custom test-program capability: define test type, parameters and data analysis routines.
• Precision scale measurement with real-time data saving to reports.

Detailed Specifications (table rows)
BHV-1000TPTA Semi-Automatic Micro-Vickers Hardness Tester
Vickers scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Test force: 0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807 (N); 10, 25, 50, 100, 200, 300, 500, 1000 (gf)
Test force selection: Select by turning test-force selection handwheel; currently selected force displayed on screen
Load control: Automatic (loading/holding/unloading)
Turret (objective and indenter switching): Automatic
Hardness reading: Computer displays indentation image and performs automatic measurement
Dwell (insurance) period: Adjustable from 0 to 99 seconds
Test mode: HV / HK (Vickers / Knoop)
Hardness value range: 5-3000 HV
Maximum specimen height: 105 mm
Distance from indentation center to machine wall: 110 mm
Optical measurement system: Objective lens 10× (observation), 40× (measurement); total magnification 100× (observation) / 400× (measurement); measurement range 0–200 μm; graduation 0.025 μm
XY coordinate test bench: Dimensions 100 × 100 mm; Travel 25 × 25 mm; Resolution 0.01 mm
Automatic test bench: Dimensions 312 × 225 mm; X-axis travel 110 mm; Y-axis travel 90 mm
Test stand mobile control: Manual control, electric control and computer control (X-axis and Y-axis)
Light source: 12V / 20W; brightness PWM dimming
Energy-saving mode: Time can be set to automatically enter standby mode
Power supply: 220V 50Hz
Overall dimensions (L×W×H): 525 × 330 × 620 mm
Weight: 36 KG
Implementation standards: GB/T 4340.2; ISO 6507; ASTM E92

Basic Configuration

• Host: Vickers hardness tester (1 set)
• Vickers indenter (1)
• Objective lenses: 10× and 40× (one each)
• 10× digital micrometer eyepiece
• Cross-coordinate (XY) test table
• Leveling adjustment screws (M10x25) ×4
• Spirit level (1)
• Hex keys (2.5 mm and 3 mm) and Phillips/Flathead screwdrivers
• Standard Vickers hardness blocks: 700-800 HV1 (1), 400-600 HV0.2 (1)
• Dust cover (1)
• Fuse 2A (spare parts)
• Halogen bulb 12V/20W (spare)
• Power cord (1)
• Thin-section test table (1)
• Flat-nose pliers (1)
• Fine wire test stand (1)
• Hex socket countersunk screws M5x12 (4, stainless steel)
• Large and small V-shaped blocks (1 each)
• Certificate of Conformity, Instruction Manual and Packing List (1 each)
• Vickers Automatic Platform (set)
• Computer (set)
• Vickers Hardness Measurement System (set)

Technical specifications

• Model: BHV-1000TPTA
• Measurement types: Vickers and Knoop
• Test forces: 10–1000 gf (multiple steps) / corresponding N values
• Hardness range: 5–3000 HV
• Optical magnification: observation 100×; measurement 400×
• Measurement resolution: optical graduation 0.025 μm; XY resolution 0.01 mm
• Specimen clearance: max specimen height 105 mm; indentation center distance 110 mm
• Automation: automatic load control, turret switching, automatic image measurement and report generation
• Power: 220V 50Hz
• Standards: GB/T 4340.2, ISO 6507, ASTM E92
