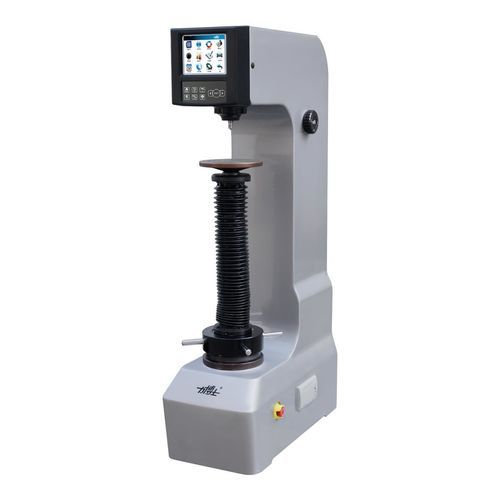

Rockwell hardness tester HRS-150B

BrinellVickersbenchtop

Product overview
The HRS-150B digital display, height-adjustable Rockwell hardness tester is an automated precision instrument for hardness testing of medium to large components. Key features include motorised loading/unloading, a 5.6-inch colour touchscreen and a 400 mm maximum specimen height, enabling efficient and repeatable Rockwell measurements and data management.

Product advantages

• Automatic force application and release; supports automatic calculation for 15 Rockwell scales including HRA.
• Integrated dual-core 32-bit ARM processor for on-board data processing and display.
• Dual control: colour resistive touchscreen for parameter setting plus touch buttons to reduce mechanical-wear risks.
• Motor-controlled application, dwell and removal of test force to eliminate manual tester variability.
• Built-in hardness conversion using ASTM E140-12be, ISO 18265:2013 and GB/T 1172 standards for automatic conversions.
• Single-point and multi-point statistical modes; stores 200 single-point records and 100 multi-point records; multi-point mode includes hardness distribution curve analysis and automatic max/min/average calculations.
• Operating system supports 12 languages for international use.
• Fifteen measurement scales can be calibrated independently; built-in printer for result output.
• Pre-test force locking: lead screw locks at 98.07 N (10 kgf) to prevent pre-load overshoot.

Detailed specifications
Rockwell scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Initial test force: 98.07 N (10 kgf)
Total test forces: 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf)
Dwell (holding) time: adjustable 0–60 s
Display: 5.6-inch resistive touchscreen, 640×480 resolution
Hardness resolution: 0.1 HR
Loading method: automatic loading, holding and unloading
Hardness conversion (available): HRA, HRB, HRC, HRE, HRF, HRG, HRK, HRH, HR15T, HR30T, HR45T, HR15N, HR30N, HR45N, HV0.1, HV1, HV5, HV10, HV15, HV30, HV50, HBS2, HBS10, HBS30, HBW, HK0.5, HK1, HLD, HS, MPa
Conversion standards: ASTM E140-12be, ISO 18265:2013, GB/T 1172
Instrument correction range: -10.0 HR to +10.0 HR (step 0.1 HR)
Data storage: 200 single-point records, 100 grouped records; includes data review and distribution-curve analysis with automatic max/min/average calculations
Printer: built-in
Maximum specimen height: 400 mm
Distance from indentation center to machine wall: 160 mm
Dimensions (W×D×H): 540 × 275 × 1020 mm
Net weight: 138 kg
Standards: GB/T 230, ISO 6508, ASTM E18

Basic configuration

• 1 — Rockwell hardness tester — Unit: unit — Quantity: 1 — Remarks: HRS-150B
• 2 — Large flat workbench — Unit: piece — Quantity: 1
• 3 — Small flat workbench — Unit: piece — Quantity: 1
• 4 — V-shaped workbench — Unit: piece — Quantity: 1
• 5 — Diamond conical indenter — Unit: piece — Quantity: 1 — Remarks: 120°
• 6 — Carbide ball indenter — Unit: piece — Quantity: 1 — Remarks: Φ1.588 mm
• 7 — Steel balls — Unit: piece — Quantity: 5 — Remarks: Φ1.588 mm
• 8 — Power cord — Unit: piece — Quantity: 1
• 9 — Fuse tube — Unit: piece — Quantity: 2
• 10 — Standard Rockwell hardness block — Unit: block — Quantity: 1 — Remarks: 80–85 HRA
• 11 — Standard Rockwell hardness block — Unit: block — Quantity: 1 — Remarks: 85–100 HRB
• 12 — Standard Rockwell hardness block — Unit: block — Quantity: 1 — Remarks: 60–70 HRC
• 13 — Standard Rockwell hardness block — Unit: block — Quantity: 1 — Remarks: 40–50 HRC
• 14 — Standard Rockwell hardness block — Unit: block — Quantity: 1 — Remarks: 20–30 HRC
• 15 — Small screwdriver — Unit: piece — Quantity: 1
• 16 — Large screwdriver — Unit: piece — Quantity: 1
• 17 — Dust cover — Unit: piece — Quantity: 1
• 18 — Spirit level — Unit: piece — Quantity: 1
• 19 — Accessory box — Unit: piece — Quantity: 1
• 20 — User manual — Unit: copy — Quantity: 1
• 21 — Certificate of conformity — Unit: copy — Quantity: 1
• 22 — Packing list — Unit: copy — Quantity: 1

Technical characteristics

• Model: HRS-150B
• Maximum specimen height (frame elevation): 400 mm
• Supported Rockwell test forces: 60 kgf, 100 kgf, 150 kgf (pre-test force 10 kgf)
• Display: 5.6-inch resistive touchscreen, 640×480
• Data storage: 200 single-point records, 100 multi-point records
• Built-in printer: yes
• Dimensions and weight: 540 × 275 × 1020 mm; 138 kg
• Standards compliance: GB/T 230, ISO 6508, ASTM E18
