Knoop/Vickers hardness tester QHV-1000TPTA

micro Vickersbenchtopfor thin sheet material

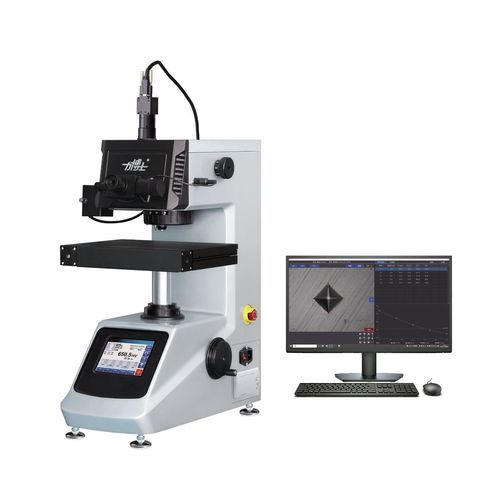

Product Overview This QHV-1000TPTA micro‑Vickers hardness tester integrates mechanical, optical and computer technologies to perform fully automatic HV/HK hardness testing with digital display. It supports automatic turret switching (objectives and indenter), automatic diagonal measurement input from images, automated hardness calculation, data storage, display, printing and hardness conversion. It is designed for small metal parts, thin sections, metal foils, hardened layers and surface treatments (electroplating, nitrided, carburized, cyanided) as well as non‑metallic materials (jewellery, ceramics, glass) that require low test forces.

Key Functional Summary Image‑processing microhardness tester with a high‑precision automated stage enabling autofocus, automated loading/holding/unloading, programmable point patterns and automated reporting. Results and images can be exported or transmitted over a network for laboratory workflows and QA traceability.

Product Advantages

• Automated operation: autofocus, turret switching and automatic indentation imaging/measurement for repeatable results.
• Integrated control: PC‑based software with mouse operation and report generation.
• Flexible stage control: manual, electric or computer control for X, Y and lift movements.
• Panoramic scanning: generate surface panorama to locate test points quickly.
• Surface correction: multiple correction modes to reduce curved‑surface testing errors.
• Multidimensional analysis: hardness conversion methods, real‑time curves and statistical summaries.
• Customisable test programs and reports: user‑defined test types, parameters and data layout.
• Carburized‑layer analysis: automatic calculation and presentation of carburized layer depth based on hardness threshold.
• Networkable data handling: automatic calculation, storage, printing and electronic report export.

Detailed Specifications (key parameters) Model: QHV-1000TPTA Fully Automatic Micro‑Vickers Hardness Tester
Vickers scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Test forces (N): 0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807
Test forces (gf): 10, 25, 50, 100, 200, 300, 500, 1000
Force selection: mechanical handwheel; current force shown on screen
Load control: automatic (loading/holding/unloading)
Turret: automatic objective and indenter switching
Hardness reading: automatic image measurement displayed on PC
Focus: autofocus
Dwell time (holding): adjustable 0–99 s
Test modes: HV / HK (Vickers / Knoop)
Hardness range: 5–3000 HV
Max specimen height: 105 mm
Distance from indentation center to machine wall: 110 mm
Optical system: objectives 10× (observation), 40× (measurement); total magnification 100× (obs), 400× (meas); measurement range 0–200 μm; graduation 0.025 μm
XY coordinate stage: table 100×100 mm; stroke 25×25 mm; resolution 0.01 mm
Automatic stage: table 312×225 mm; X travel 110 mm; Y travel 90 mm
Stage control: manual, electric or computer control (X, Y, lift)
Light source: 12V/20W, PWM dimming
Energy saving: programmable standby time
Power supply: 220V 50Hz
Overall dimensions (L×W×H): 525×330×620 mm
Weight: 36 kg
Standards: GB/T 4340.2; ISO 6507; ASTM E92

Basic Configuration (included items and accessories)

• Host: QHV-1000TPTA (1 set)
• Vickers indenter (1)
• Objectives: 10× and 40× (1 each)
• 10× digital micrometer eyepiece (1)
• Cross‑coordinate test table (1)
• Leveling screws M10×25 (4)
• Spirit level (1)
• Hex keys 2.5 mm and 3 mm (1 each)
• Screwdrivers: Phillips 5×75 and Flat 4×75
• Standard Vickers blocks: 700–800 HV1 (1) and 400–600 HV0.2 (1)
• Dust cover (1)
• Fuses 2A (2) and spare halogen bulb 12V/20W (1)
• Power cord (1)
• Thin‑section test table (1)
• Flat‑nose pliers and fine wire test stand (1 each)
• Hex socket countersunk screws M5×12 (4, SS)
• Large and small V‑blocks (1 each)
• Certificate of conformity, user manual, packing list (1 each)
• Vickers automatic platform, computer and measurement software (1 set each)

Technical Specifications

• Model: QHV-1000TPTA
• Measurement methods: Vickers (HV) and Knoop (HK)
• Force range: 10–1000 gf (8 selectable forces) with corresponding N values
• Automatic functions: loading/holding/unloading, turret switching, autofocus, automatic indentation imaging and measurement, report generation
• Optical magnifications: observation 100×; measurement 400×
• Measurement range & resolution: 0–200 μm; 0.025 μm graduation
• XY stage precision: resolution 0.01 mm; specified travels as listed
• Data handling: automatic calculation, storage, display, printing, hardness conversion, electronic report generation, network transmission
• Power: 220V 50Hz
• Dimensions & weight: 525×330×620 mm; 36 kg
• Standards compliance: GB/T 4340.2, ISO 6507, ASTM E92
