Macro Vickers hardness tester BHV series

micro Vickersbenchtopfor plates

Product Overview

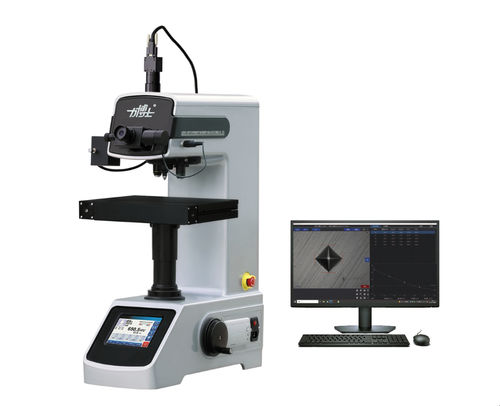

The BHV-5/10/30/50TPTA Vickers hardness tester is designed for precise micro- and macro-Vickers testing of metallic and certain non-metallic materials. It supports measurement on tiny parts, thin sheets, metal foils, wires, thin hardened layers and electroplated coatings, and can evaluate internal hardness of induction-hardened or carburized layers by following microstructural features. The instrument integrates optical, mechanical and electronic systems, with high-reliability components, touchscreen operation and repeatable measurement procedures.

Detailed Specifications
BHV-5TPTA — Test force (N): 1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03 — Test force (kgf): 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 — Scale: HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5
BHV-10TPTA — Test force (N): 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07 — Test force (kgf): 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 — Scale: HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10
BHV-30TPTA — Test force (N): 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196, 294.2 — Test force (kgf): 0.5, 1, 2, 2.5, 3, 5, 10, 20, 30 — Scale: HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30
BHV-50TPTA — Test force (N): 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196, 294.2, 490.3 — Test force (kgf): 1, 2, 2.5, 3, 5, 10, 20, 30, 50 — Scale: HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50

General parameters and functions
Test force selection: touchscreen
Method of applying test force: automatic (loading/holding/unloading)
Test-force holding time: adjustable from 0 to 99 s
Hardness measurement range: BHV-5TPTA: 8–3000 HV; BHV-10/30/50TPTA: 5–3000 HV
Maximum specimen height: 110 mm (200 mm when extension sleeve removed)
Distance from indenter center to machine wall: 130 mm
Optical system — Objective/eyepiece/total magnification: BHV-5: 20× (observation), 40× (measurement); eyepiece 10×; total 200× (observation), 400× (measurement). BHV-10: 10× (observation), 40× (measurement). BHV-30/50: 10×/40×; measurement magnifications as specified.
Measurement resolution: down to 0.025 μm (model-dependent); alternative resolutions: 0.0625 μm, 0.125 μm
Test stand lifting: manual
Test bench (XY) — Manual stage: 100 × 100 mm; travel 25 × 25 mm; resolution 0.01 mm
Automatic test bench: 312 × 225 mm; X travel 110 mm; Y travel 90 mm
Light source: 12V/20W
Power supply: 220V 50Hz
External dimensions (L×W×H): 500 × 330 × 660 mm
Weight: 55 kg

Applications
Suitable for Vickers hardness testing of small metal parts, thin plates, metal foils, wires, thin hardened layers, electroplated coatings, and non-metallic materials (glass, jewelry, ceramics) that cannot be tested with higher-force methods.

Characteristics / Technical specifications

• Model / Series: BHV-5/10/30/50TPTA
• Force ranges: 0.2–50 kgf depending on model (corresponding N values listed above)
• Hardness scales: HV0.2 to HV50 depending on model
• Touchscreen selection and automatic loading/holding/unloading
• High-magnification optical measurement with dual optical channel and photoelectric/optoelectronic sensing
• Measurement resolution down to 0.025 μm (model-dependent)
• Specimen clearance up to 110 mm (200 mm without extension sleeve)
• XY test stage with fine resolution and optional automatic test bench
• Power: 220V 50Hz; Light source: 12V/20W
• Dimensions (L×W×H): 500×330×660 mm; Weight: 55 kg
