Micro Vickers hardness tester QHV series

benchtopfor thin sheet materialglass

Product overview

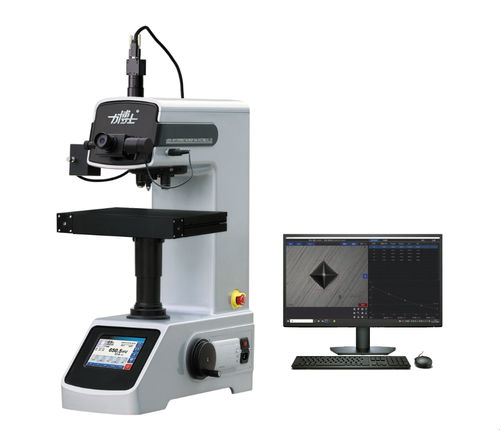

The QHV-5/10/30/50TPTA series is a fully automatic digital Vickers hardness tester integrating mechanical, optical and computer systems. It performs automated loading/holding/unloading, supports multiple interfaces (Ethernet, Bluetooth, RS232) and provides data recording and traceability. Intended for hardness testing of thin hardened layers and small/precision specimens such as micro-components, thin sheets, metal foils, wires, electroplated coatings, nitrided layers, and non-metallic materials (glass, jewelry, ceramics).

Detailed specifications (by model)
QHV-5TPTA — Test forces (N): 1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03; (kgf): 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5; Scales: HV0.2–HV5
QHV-10TPTA — Test forces (N): 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07; (kgf): 0.3–10; Scales: HV0.3–HV10
QHV-30TPTA — Test forces (N): 4.903–294.2; (kgf): 0.5–30; Scales: HV0.5–HV30
QHV-50TPTA — Test forces (N): 9.807–490.3; (kgf): 1–50; Scales: HV1–HV50

General parameters and functions
Test force selection: touchscreen selection
Force application: automatic (loading/holding/unloading)
Hold time: adjustable 0–99 s
Hardness range: QHV-5TPTA: 8–3000 HV; QHV-10/30/50TPTA: 5–3000 HV
Max specimen height: 110 mm (200 mm when extension sleeve removed)
Distance indenter center to machine wall: 130 mm

Optical system
Objectives: QHV-5TPTA — 20× (observation), 40× (measurement); QHV-10TPTA — 10×/40×; QHV-30/50TPTA — 10×/40×
Eyepiece: 10×
Total magnification examples: QHV-5TPTA — 200× (obs), 400× (meas); others: 100×/400×
Measurement resolution: QHV-5/10 — 0.025 μm; QHV-30/50 — 0.125 μm or 0.0625 μm

Test bench and motion
Stand lift: manual / electric (software control)
XY coordinate stage — 100 × 100 mm; travel 25 × 25 mm; resolution 0.01 mm
Automatic test stage — 312 × 225 mm; travel X 110 mm; Y 90 mm

Electrical & mechanical parameters
Light source: 12 V / 20 W
Power supply: 220 V 50 Hz
External dimensions (L × W × H): 500 × 330 × 660 mm
Weight: 55 kg

Product advantages

• Automatic loading, hold and unloading for consistent test cycles and reduced operator influence.
• High-definition touchscreen with multi-language UI and one-touch test start for fast operation.
• Automatic switching of objectives and indenters to minimize manual errors and increase throughput.
• Digital direct-read Vickers values with high accuracy and repeatability, compliant with national and ISO standards.
• Data logging, statistical analysis, printing and upload functions for quality traceability and audit.

Characteristics / technical specifications

• Series / model designation: QHV-5/10/30/50TPTA
• Applicable specimens: micro-components, thin sheets, foils, wires, electroplated coatings, nitrided layers, glass, jewelry, ceramics
• Test force range: 0.2 kgf to 50 kgf (model-dependent)
• Hardness range: 5–3000 HV (model-dependent)
• Optical magnification: observation and measurement objectives (10×/20×, 40× measurement)
• Measurement resolution: down to 0.025 μm (model-dependent)
• Max specimen height: 110 mm (extendable to 200 mm)
• Interfaces: Ethernet, Bluetooth, RS232 for data management and networking
• Power / light / dimensions / weight: 220 V 50 Hz; 12 V/20 W; 500 × 330 × 660 mm; 55 kg
