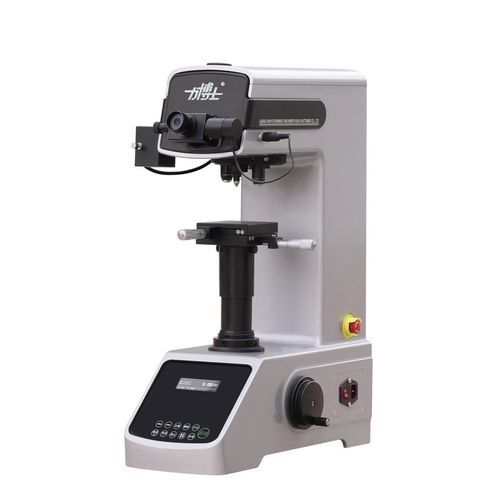

Knoop/Vickers hardness tester HV-5SPTA

micro Vickersbenchtopfor thin sheet material

Product overview
The HV-5SPTA is an optomechatronic micro-Vickers hardness tester that integrates a high-magnification optical measurement system with photoelectric sensing. It is designed for precise testing of small components, thin sheets, metal foils, electroplated coatings, glass, ceramics and surface-hardened layers (induction-hardened, carburized). Indentation measurement is performed manually via a micrometer eyepiece; the instrument provides automatic loading, holding and unloading and supports laboratory and research use.

Key features

• Automatic turret and automatic load/hold/unload control
• Optical measurement with 10× observation and 40× measurement objectives; graduation 0.025 μm
• Supported Vickers scales: HV0.2–HV5; hardness range 5–3000 HV
• Test forces: 1.961 N, 2.942 N, 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.3 N
• Measurement accuracy: hardness conversion error approximately 3–5% HV
• Adjustable dwell time: 1–60 s
• Data interfaces and options: built-in printer, RS232, Ethernet, USB, Bluetooth; supports data export and integration with external software/MES

Detailed specifications
Vickers scales: HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5
Test forces (N): 1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.3
Optical system: objectives 10× (observation) and 40× (measurement); graduation 0.025 μm; total magnification 100× (observation) / 400× (measurement)
Load control: automatic loading, load holding and unloading
Hardness reading: microscopic measurement with manual micrometer eyepiece; hardness conversion error 3–5% HV
Dwell time: adjustable from 1 to 60 seconds
Maximum specimen height: 200 mm (with protective cover removed; standard clearance 110 mm)
Indentation center to machine wall distance: 130 mm
Test modes: HV / HK
Hardness value range: 5–3000 HV
External dimensions (W×D×H): 500 × 330 × 660 mm
Net weight: 55 kg
XY stage: table 100 × 100 mm, stroke 25 × 25 mm, resolution 0.01 mm
Power supply: AC 220 V / 50 Hz
Turret: automatic turret
Light source: 12 V / 20 W
Special features: built-in printer, zone alarm

Main configuration

• Vickers indenter: 1 piece
• Cross-coordinate (XY) test table: 1 set
• Objectives: 20× and 40× (one each where supplied)
• 10× digital micrometer eyepiece: 1 piece
• Standard Vickers hardness blocks: 700–800 HV1 and 400–600 HV5 (supplied)

Technical specifications

• Model: HV-5SPTA (series also includes HV-5/10/30/50TPTA variants)
• Measurement method: micro-Vickers optical measurement with photoelectric sensing
• Applicable materials: small components, thin sheets, metal foils, electroplated coatings, glass, ceramics, surface-hardened layers
• Vickers scales supported: HV0.2–HV5
• Measurement accuracy: hardness conversion error approx. 3–5% HV
• Loading: automatic load/hold/unload
• Indenter measurement: manual via 10× micrometer eyepiece
• XY stage: 100 × 100 mm table, 25 × 25 mm stroke, 0.01 mm resolution
• Power: AC 220 V, 50 Hz; light: 12 V / 20 W
• Dimensions & weight: 500 × 330 × 660 mm, 55 kg
• Options: built-in printer, RS232/Ethernet/USB/Bluetooth, zone alarm
