Product Overview

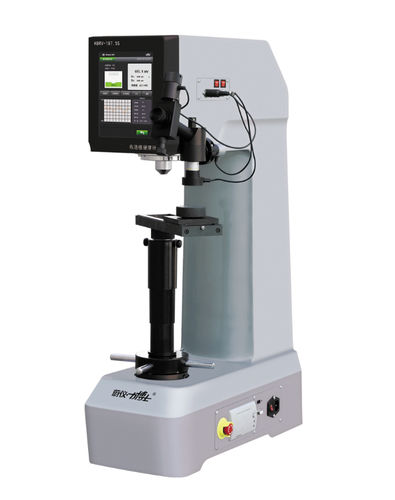

The HBRV-187.5S is a digitally displayed Brinell‑Rockwell‑Vickers hardness tester that integrates optical, mechanical and electronic systems. It supports Brinell, Rockwell and Vickers testing methods in one instrument. A microcontroller‑based control system and an electronic closed‑loop loading mechanism enable automated force application, dwell and release. Indentation measurement is performed using a micrometer eyepiece while loading and force control are automated. The instrument is designed for foundries, metallurgy, forging, power generation and research laboratories.

Product Advantages

• Multi‑method instrument: Brinell, Rockwell and Vickers scales with automatic switching between scales.
• Automated closed‑loop loading, load‑holding and unloading to minimise operator error.
• 8‑inch high‑resolution touchscreen for parameter setup, data storage, history recall and automatic hardness calculation.
• Multiple data interfaces including built‑in printer, RS232 and USB for local printing and external storage.
• High‑definition optical system with 2.5x/5x/10x objectives and 15x eyepiece, providing 37.5×–150× magnification for accurate indentation measurement.

Detailed Specifications
Total Brinell test forces: 15.625, 31.25, 62.5, 125, 187.5 kgf (153.2, 306.5, 612.9, 1226, 1839 N)
Rockwell test forces: 60, 100, 150, 15, 30, 45 kgf (588.4, 980.7, 1471, 147.1, 294.2, 441.3 N)
Vickers test forces: 5, 10, 20, 30, 50, 100 kgf (49.03, 98.07, 196.1, 294.2, 490.3, 980.7 N)
Brinell scales: HBW5/125, HBW5/62.5, HBW2.5/187.5, HBW2.5/62.5, HBW2.5/31.25, HBW2.5/15.625
Rockwell scales: HRA, HRBW, HRC, HRD, HRFW, HRGW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW
Vickers scales: HV5, HV10, HV20, HV30, HV50, HV100
Test ranges: Brinell 8–653 HBW; Rockwell various ranges (see scales); Vickers 5–2990 HV
Indenter types: carbide ball indenters Φ1.588 mm, Φ2.5 mm, Φ5 mm; diamond Rockwell indenter; diamond Vickers indenter
Magnification: 37.5×, 75×, 150× (2.5x/5x/10x objectives with 15x eyepiece)
Hardness readout: touchscreen display with automatic hardness calculation
Dwell (saturation) time: 1–60 s
Maximum specimen height: Rockwell 330 mm; Brinell/Vickers 285 mm
Distance from indenter centre to machine wall: 200 mm
Power supply: AC 220V/50Hz
Host weight: 100 kg
External dimensions (L×W×H): 570×270×900 mm

Basic Configuration

• 1 Host: Brinell hardness tester HBRV-187.5S (Taiwan) ×1
• 2 Microscope stand (with lighting) ×1
• 3 Attachment box (No.1) — sliding test table ×1
• 4 Small flat test bench ×1
• 5 Objective lenses: 2.5x, 5x, 10x — one each
• 6 External lighting fixture ×1
• 7 Phillips screwdriver 5x75 ×1
• 8 Flathead screwdriver 3x75 ×1
• 9 RS232 communication cable ×1
• 10 Power cord ×1
• 11 Spirit level ×1
• 12 Attachment box (No.2) — digital micrometer eyepiece ×1
• 13 Vickers diamond indenter ×1
• 14 Diamond Rockwell indenter ×1
• 15 Carbide ball indenter Φ1.5875 mm ×1
• 16 Carbide ball indenters Φ2.5, Φ5 — one each
• 17 Carbide steel ball Φ1.5875 mm ×2 (spare)
• 18 Carbide steel ball Φ2.5, Φ5 — one each (spare)
• 19 Standard Rockwell hardness block 80–85 HRA ×1
• 20 Standard Rockwell hardness block 85–100 HRBW ×1
• 21 Standard Rockwell hardness block 60–70 HRC ×1
• 22 Standard Rockwell hardness block 40–50 HRC ×1
• 23 Standard Rockwell hardness block 20–30 HRC ×1
• 24 Standard Vickers hardness block 400–500 HV30 ×1
• 25 Standard Brinell hardness block 190–225 HBW2.5/187.5 ×1
• 26 Surface Rockwell hardness block 89–91 HR15N ×1
• 27 Surface Rockwell hardness block 42–54 HR30N ×1
• 28 Surface Rockwell hardness block 74–80 HR30N ×1
• 29 Surface Rockwell hardness block 70–82 HR30TW ×1
• 30 Hex key 3 mm ×1
• 31 Printing paper ×1
• 32 Fuse 2A ×2 (spare)
• 33 Large flat test stand ×1
• 34 V‑shaped test stand ×1
• 35 Dust cover ×1
• 36 Certificate of Conformity ×1
• 37 Instruction Manual ×1
• 38 Packing List ×1

Technical Specifications

• Model: HBRV-187.5S
• Brand: LaiZhou Weiyi Experimental Machinery Manufacture Co., Ltd.
• Supported test methods: Brinell, Rockwell, Vickers
• Brinell forces: up to 187.5 kgf; Brinell range 8–653 HBW
• Rockwell forces and scales: multiple forces; supports HRA, HRBW, HRC, HRD, HRFW, HRGW and surface Rockwell scales
• Vickers forces: 5–100 kgf; Vickers range 5–2990 HV
• Indenter types: carbide balls (1.588/2.5/5 mm), diamond Rockwell and Vickers indenters
• Optical magnification: 37.5×, 75×, 150× (2.5x/5x/10x objectives with 15x eyepiece)
• Display and control: 8‑inch touchscreen; microcontroller‑based control; electronic closed‑loop loading
• Dwell time: 1–60 s
• Max specimen height: Rockwell 330 mm; Brinell/Vickers 285 mm
• Power: AC 220V/50Hz
• Host weight: 100 kg
• Dimensions (L×W×H): 570×270×900 mm
