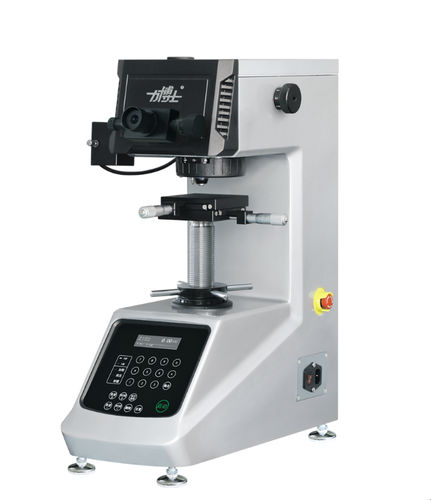

Micro Vickers hardness tester HVA-1000T

benchtopautomaticmicro

Product overview
The HVA-1000T is a benchtop micro‑Vickers hardness tester integrating mechanical, optical and computing technologies. It delivers precise, repeatable hardness measurements for small metal components, thin sections, metal foils, electroplated coatings, nitrided and carburized layers, as well as non‑metallic materials such as jewelry, ceramics and glass. The instrument supports manual indentation measurement with a micrometer eyepiece and offers optional automation and image‑processing software to streamline laboratory and quality‑control workflows.

Main functions / options

• Model: HVA-1000T
• Automatic turret: not fitted (–)
• Hardness value reading: key input
• Precision XY coordinate worktable: included
• Optional Knoop indenter: available
• Vickers measurement software (CCD image processing): optional

Main technical parameters
Vickers scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Test forces: 0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807 N (10, 25, 50, 100, 200, 300, 500, 1000 gf)
Force selection: by turning the test‑force selection handwheel; selected force displayed on screen
Load control: automatic (loading / holding / unloading)
Dwell (holding) time: adjustable 0–60 s (1 s increments)
Test mode: HV / HK
Hardness range: 5–3000 HV, indication error 3–5% HV
Maximum specimen height: 110 mm (distance from indentation center to machine wall: 110 mm)
Optical measurement: objectives 10× (observation), 40× (measurement); total magnification 100× (observation), 400× (measurement); graduation 0.025 μm
Indentation measurement range: 0–200 μm
XY stage: dimensions 100 × 100 mm; travel 25 × 25 mm; resolution 0.01 mm
Light source: 12 V / 20 W, adjustable intensity
Energy‑saving mode: automatic standby programmable
Power supply: 220 V 50 Hz, power consumption 100 W
Dimensions & weight: 525 × 330 × 620 mm; weight 36 kg
Standards: GB/T 4340.2, ISO 6507, ASTM E92

Basic configuration (standard accessories)

• Host: Vickers hardness tester — Qty: 1
• Vickers indenter — Qty: 1
• Objectives: 10×, 40× — Qty: 1 each
• Accessory box (including 10× micrometer eyepiece) — Qty: 1
• Cross‑coordinate test table — Qty: 1
• Leveling screws M10×25 — Qty: 4
• Spirit level — Qty: 1
• Hex key 2.5 mm — Qty: 1
• Hex key 3 mm — Qty: 1
• Phillips screwdriver 5×75 — Qty: 1
• Flathead screwdriver 5×75 — Qty: 1
• Standard Vickers block 700–800 HV1 — Qty: 1
• Standard Vickers block 400–600 HV0.2 — Qty: 1
• Dust cover — Qty: 1
• Fuse 2 A — Qty: 2 (spare)
• Halogen bulb 12 V/20 W — Qty: 1 (spare)
• Power cord — Qty: 1
• Certificate of Conformity — Qty: 1
• Instruction manual — Qty: 1
• Packing list — Qty: 1

Features / specifications (summary)

• Model: HVA-1000T
• Measurement scales: HV0.01–HV1
• Forces: 0.098–9.807 N (10–1000 gf)
• Optical magnification: 100× (observation) / 400× (measurement)
• Graduation value: 0.025 μm
• Indentation range: 0–200 μm
• XY stage travel / resolution: 25 × 25 mm / 0.01 mm
• Max specimen height: 110 mm
• Light source: 12 V / 20 W adjustable
• Power: 220 V 50 Hz, 100 W
• Dimensions / Weight: 525 × 330 × 620 mm / 36 kg
• Standards: GB/T 4340.2, ISO 6507, ASTM E92
