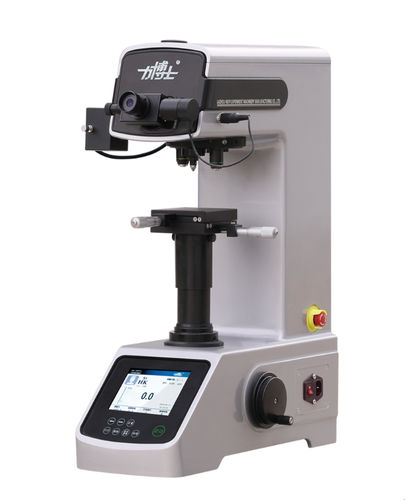

Macro Vickers hardness tester HV series

micro Vickersbenchtopfor thin sheet material

Product Overview
The HV-5/10/30/50MPTA Vickers hardness tester is designed for measuring metallic materials (small components, thin sheets, metal foils, wires, thin hardened layers, electroplated coatings) and selected non-metallic materials (glass, jewelry, ceramics). It supports microstructure-aware testing such as induction-hardened or carburized layers. The HV-5/10MPTA is an opto-mechatronic integrated instrument featuring a high-magnification optical measurement system with dual-channel optics, photoelectric and optical-encoder sensing. Touch-screen operation enables automatic input of indentation length; the LCD displays applied test force, dwell time, measurement count and hardness results.

Detailed Specifications
Test force:
HV-5MPTA — HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 — 1.961 N, 2.942 N, 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N
HV-10MPTA — HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 — 2.942 N, 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N, 98.07 N
HV-30MPTA — HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30 — 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N, 98.07 N, 196 N, 294.2 N
HV-50MPTA — HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 — 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N, 98.07 N, 196 N, 294.2 N, 490.3 N
Load control: Automatic (loading/holding/unloading)
Turret: Automatic turret
Dwell (force holding) time: Adjustable 5 to 60 s (5 s increments)
Test mode: HV/HK
Maximum specimen height: 110 mm (200 mm with extension sleeve removed)
Distance from indentation center to machine wall: 130 mm
Eyepiece: 10X
Magnification options: 200×400× / 100×400× / 100×200× / 100×200× (as supplied)
Measurement resolution: 0.025 μm
Halogen lamp: 12V/20W, adjustable brightness, energy-saving auto-off
XY coordinate stage: Platform 100 × 100 mm; Travel 25 × 25 mm; Resolution 0.01 mm
Power supply: 220V 50Hz
Overall dimensions & weight: 500 × 330 × 660 mm; 55 kg
Special configuration: Built-in printer, zone alarm
Standards: GB/T 4340.2, ISO 6507, ASTM E92

Basic Configuration

• 1 — Host: Vickers hardness tester — Quantity: 1 — Origin: Taiwan
• 2 — Vickers indenter — Quantity: 1
• 3 — Objective lens — Quantity: 2
• 4 — Accessory box (including 10x digital micrometer eyepiece) — Quantity: 1
• 5 — Cross-coordinate test table — Quantity: 1
• 6 — Leveling adjustment screw M10x25 — Quantity: 4
• 7 — Spirit level — Quantity: 1
• 8 — Hex key 2.5 mm — Quantity: 1
• 9 — Hex key 3 mm — Quantity: 1
• 10 — Phillips screwdriver 5×75 — Quantity: 1
• 11 — Flathead screwdriver 5×75 — Quantity: 1
• 12 — Standard Vickers hardness block 700–800 HV1 — Quantity: 1
• 13 — Standard Vickers hardness block 400–600 HV0.2 — Quantity: 1
• 14 — Dust cover — Quantity: 1
• 15 — Fuse 2A — Quantity: 2
• 16 — Halogen bulb 12V/20W (spare) — Quantity: 1
• 17 — Thin-plate clamping table — Quantity: 1
• 18 — Flat-clamp table — Quantity: 1
• 19 — Fine wire holding stage — Quantity: 1
• 20 — Power cord — Quantity: 1
• 21 — Certificate of Conformity — Quantity: 1
• 22 — Instruction manual — Quantity: 1
• 23 — Packing list — Quantity: 1

Technical specifications

• Model designation: HV-5/10/30/50MPTA (series)
• Test forces per model: 1.961 N up to 490.3 N depending on model
• Automatic load control with programmable dwell time (5–60 s)
• Automatic turret for objective/indenter selection
• High-magnification optical measurement with dual-channel optics, photoelectric and optical encoder sensing
• Touch-screen operation and LCD display for forces, times, counts and hardness values
• Measurement resolution: 0.025 μm
• Halogen illumination 12V/20W, adjustable brightness, auto-off energy-saving mode
• XY stage: 100 × 100 mm platform, 25 × 25 mm travel, 0.01 mm resolution
• Test modes: HV and HK; standards: GB/T 4340.2, ISO 6507, ASTM E92
• Power: 220V 50Hz; Overall size: 500 × 330 × 660 mm; Weight: 55 kg
