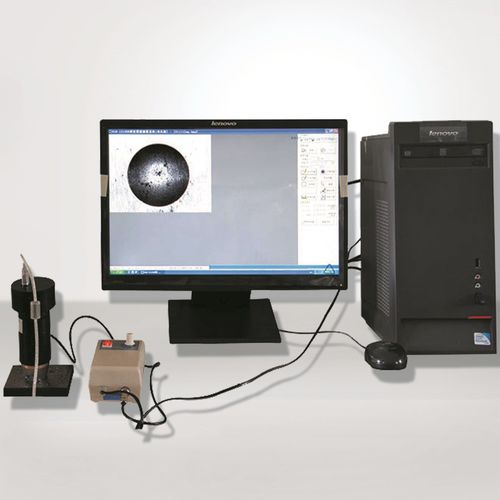

Gray-scale image processing system

image acquisition

* The CCD image processing system can finish the process automatically: measurement of the diagonal length of indentation, hardness value display, testing data and image saving, etc. * It is available to preset the upper and lower limit of hardness value, the testing result can be inspected whether it is qualified automatically. * Proceed hardness testing on 20 test points at one time (preset the distance between test points at will), and save the testing results as one group. * Converting between various hardness scales and tensile strength * Inquire the saved data and image at any time * Customer may adjust the accuracy of the measured hardness value at any time according to the calibration of Hardness Tester Standard accessories 1. Image processing software 2. Image card 3. Softdog 4. CCD camera
