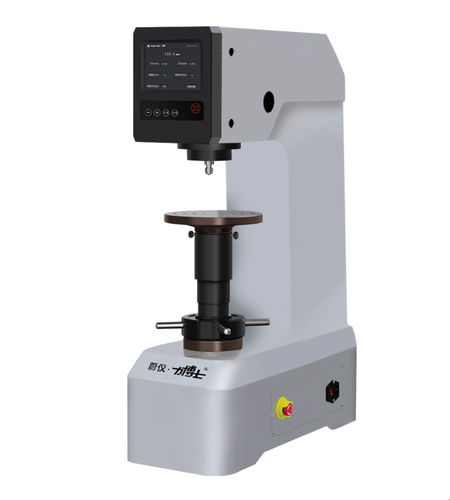

Brinell hardness tester DHB-3000T

benchtopdigital displaydigital

Product Overview
The DHB-3000T is an electronic Brinell hardness tester combining high-sensitivity physical touch buttons with a touchscreen and a precision load-transducer feedback system to provide closed-loop, high-accuracy load control. Integrating optical, mechanical and electronic technologies, it is intended for hardness testing of cast iron, steel, nonferrous metals and nonmetallic materials such as rigid plastics and bakelite. The instrument supports digital parameter setting, automated loading/unloading sequences and comprehensive self-diagnostic fault detection. Indentation measurement requires manual operation with the included microscope. Stable performance and straightforward operation make it suitable for factory workshops, laboratories and research institutions.

Product Advantages

• Dual-control interface: highly sensitive physical touch buttons combined with a touchscreen for improved reliability and operational flexibility.
• Touchscreen provides automatic calculation and immediate display of hardness values for efficient workflow.
• Closed-loop load control via precision load-transducer for high-accuracy loading.
• Durable design and easy-to-clean surfaces to mitigate shortened button lifetime and degraded responsiveness in harsh environments.

Detailed Specifications
Test force levels (pairs as presented):
612.9 N (62.5 kgf) | 4900 N (500 kgf)
980 N (100 kgf) | 7355 N (750 kgf)
1225 N (125 kgf) | 9800 N (1000 kgf)
1839 N (187.5 kgf) | 14,700 N (1500 kgf)
2452 N (250 kgf) | 29,400 N (3000 kgf)

Other specifications:
Hardness test range: 8–650 HBW
Reading microscope magnification: 20×
Maximum specimen height: 210 mm
Maximum distance from press head center to machine body: 150 mm
Hardness value reading: automatic calculation and display of entered values
Power supply: AC 220V/50Hz
External dimensions: 515 × 250 × 830 mm
Weight: 127 kg
Applicable standards: GB/T 231.2, ISO 6506, ASTM E10

Basic Configuration (items)
1 | Electronic Brinell Hardness Tester | DHB-3000T | Taiwan | Unit: — | Quantity: 1
2 | Accessory box (1) | Large flat test stand | — | item | 1
3 | Small flat test stand | — | item | 1
4 | V-shaped test stand | — | item | 1
5 | Carbide indenter | φ2.5 | item | 1
6 | Carbide indenter | φ5 | item | 1
7 | Carbide indenter | φ10 | item | 1
8 | Carbide steel ball | φ2.5 | item | 1 | Spare parts
9 | Carbide steel ball | φ5 | item | 1 | Spare parts
10 | Carbide steel ball | φ10 | item | 1 | Spare parts
11 | Standard Brinell hardness block | 90HBW10/1000 | block | 1
12 | Standard Brinell hardness block | 210HBW10/3000 | block | 1
13 | 20× digital display microscope | — | item | 1
14 | 2A fuse | — | item | 2 | Spare parts
15 | Flathead screwdriver | 3×75 | piece | 1
16 | Spirit level | — | item | 1
17 | Power cord | — | piece | 1
18 | Dust cover | — | piece | 1
19 | Instruction manual | — | copy | 1
20 | Packing list | — | copy | 1
21 | Certificate of conformity | — | copy | 1

Features / Technical Specifications

• Model: DHB-3000T; Type: Electronic Brinell hardness tester; Control: physical touch buttons + touchscreen dual-control.
• Load control: precision load-transducer with closed-loop high-accuracy loading.
• Test force levels: see listed pairs; Hardness range: 8–650 HBW.
• Microscope magnification: 20×; Maximum specimen height: 210 mm; Maximum distance from press head center to machine body: 150 mm.
• Power: AC 220V/50Hz; External dimensions (W×D×H): 515 × 250 × 830 mm; Weight: 127 kg.
• Applicable standards: GB/T 231.2, ISO 6506, ASTM E10; Includes accessory set (indenter options, steel balls, hardness blocks, microscope, spare parts and tools).
