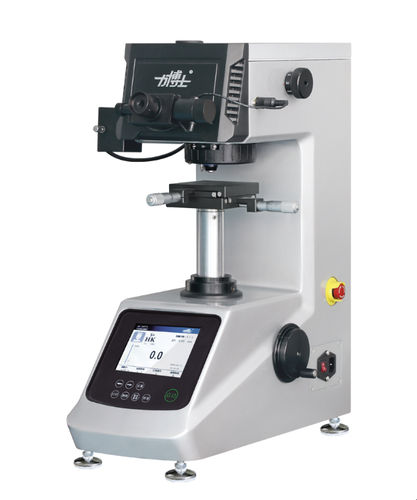

Knoop/Vickers hardness tester HV-1000MPTA

micro Vickersbenchtopfor thin sheet material

Product Overview
The HV-1000MPTA micro-Vickers hardness tester is designed for Vickers and Knoop hardness testing of small metal parts, thin sections, foils, case-hardened and surface-treated layers, and non-metallic materials such as jewelry, ceramics and glass. The instrument supports automatic loading/holding/unloading, automatic turret switching for objectives and indenters, and can be adapted with a CCD and software for image-processing tests and networked result transfer.

Detailed Specifications
Model: HV-1000MPTA
Vickers scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Test forces: 10, 25, 50, 100, 200, 300, 500, 1000 gf (0.098–9.807 N)
Load control: Automatic (loading/holding/unloading); dwell time adjustable 1–60 s (5 s increments)
Test modes: HV / HK (Vickers / Knoop)
Hardness range: 5–3000 HV (input diagonal reading from micrometer for calculation)
Maximum specimen height (center of indentation to machine wall): 110 mm
Optical measurement: objectives 10× (observation) / 40× (measurement); graduation 0.025 μm; total magnification 100× / 400×; measurement range 0–200 μm
XY stage: table 100 × 100 mm; travel 25 × 25 mm; resolution 0.01 mm
Illumination: 12V/20W halogen with PWM dimming
Power: 220V 50Hz, 100W; Dimensions: 525 × 330 × 620 mm; Weight: 36 kg
Standards: GB/T 4340.2-2012, ISO 6507-2, ASTM E384 / ASTM E92

Basic Configuration (Accessories & Items)

• Host unit — Micro-Vickers hardness tester — Qty: 1
• Vickers indenter — Qty: 1
• Objective lenses — 10×, 40× — Qty: 1 each
• Accessory box (contains listed items)
• 10× digital micrometer eyepiece — Qty: 1
• Cross-coordinate test table — Qty: 1
• Leveling screws M10x25 — Qty: 4
• Spirit level — Qty: 1
• Hex keys 2.5 mm & 3 mm — Qty: 1 each
• Phillips and flathead screwdrivers 5x75 — Qty: 1 each
• Standard Vickers hardness blocks: 700–800 HV1 and 400–600 HV0.2 — Qty: 1 each
• Dust cover, spare fuse (2A ×2), spare halogen bulb 12V/20W, power cord — Qty: as specified
• Thin-section stage, flat-nose pliers, fine-wire test stand, V‑blocks (large and small) — Qty: as specified
• Certificate of Conformity, Instruction Manual, Packing List — Qty: 1 each

Optional Accessories

• Additional hardness calibration blocks (other ranges)
• CCD image-processing system with software and network output

Technical specifications

• Model: HV-1000MPTA
• Scales: HV0.01–HV1
• Forces: 10–1000 gf (0.098–9.807 N)
• Automatic functions: loading/holding/unloading; automatic turret for objectives/indenters
• Optical accuracy: graduation 0.025 μm; measurement range 0–200 μm; up to 400× measurement magnification
• XY stage travel/resolution: 25 × 25 mm travel; 0.01 mm resolution
• Specimen clearance: max height 110 mm
• Lighting: 12V/20W halogen, PWM dimming
• Power: 220V 50Hz, 100W
• Dimensions & weight: 525 × 330 × 620 mm; 36 kg
• Standards: GB/T 4340.2-2012, ISO 6507-2, ASTM E384 / ASTM E92
• Special features: built-in printer option, zone alarm, image-processing capability with CCD and software
