Vickers hardness tester HV-1000SPTA

Knoop/Vickersmicro Vickersbenchtop

Product overview

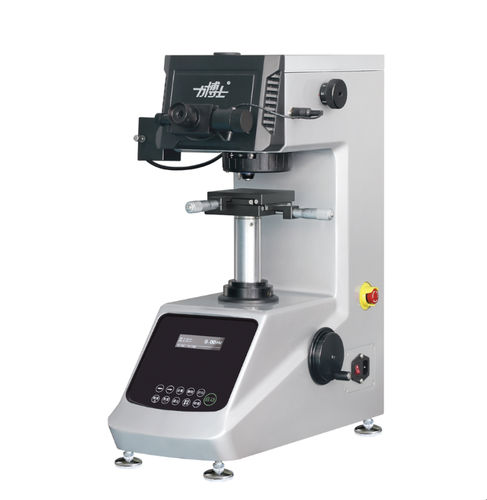

This micro‑Vickers hardness tester (models HV-1000SPTA / SPA / STA / SA) is designed to meet GB/T 4340.2-2012, ISO 6507-2 and ASTM standards. It integrates mechanical, optical and computer technologies to perform automatic force control, objective/indenter switching, hardness calculation, data storage, display and printing. It supports Vickers and Knoop testing on small metallic parts, thin sections, foils, surface-hardened layers and non-metallic samples such as jewelry, ceramics and glass.

Detailed specifications

• Model variants: HV-1000SPTA / SPA / STA / SA
• Measurement scales: Vickers HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 (0–200 μm diagonal range)
• Test forces: 10, 25, 50, 100, 200, 300, 500, 1000 gf (0.098 N – 9.807 N)
• Force selection: manual handwheel; selected force shown on screen
• Load control: automatic loading / holding / unloading; dwell time adjustable 1–60 s (5 s steps)
• Turret: automatic (SPTA/STA) or manual (SPA/SA)
• Optical measurement: objective 10× (observation) and 40× (measurement); graduation 0.025 μm; total magnification 100×/400×
• XY stage: table 100 × 100 mm; stroke 25 × 25 mm; resolution 0.01 mm
• Max specimen height / indentation center to wall: 110 mm
• Illumination: 12V/20W halogen with PWM dimming; energy‑saving standby after 5 min
• Power: 220V 50Hz, 100W; dimensions 525 × 330 × 620 mm; weight 36 kg
• Standards: GB/T 4340.2, ISO 6507-2, ASTM E384 (E92 referenced)

Basic configuration

• Main unit HV-1000 series — 1
• Vickers indenter — 1
• Objectives 10× and 40× — 1 each
• Accessory box (including 10× digital micrometer eyepiece) — 1
• Cross-coordinate XY stage — 1
• Leveling screws M10×25 — 4; spirit level — 1
• Hex keys 2.5 mm and 3 mm; screwdrivers Phillips 5×75 and flat 5×75
• Standard Vickers blocks (700–800 HV1 and 400–600 HV0.2) — 1 each
• Dust cover; fuses 2A (spares) — 2; halogen bulb 12V/20W (spare) — 1; power cord — 1
• Thin‑section stage, pliers, fine wire test stand, V‑blocks, documentation (certificate, manual, packing list)

Optional accessories

• Additional hardness blocks (extended HV ranges)
• CCD image‑processing system with acquisition card and software

Features / technical specifications

• Test modes: Vickers (HV) and Knoop (HK)
• Hardness range: 5–3000 HV (or via measured diagonal input)
• Automatic load control and accurate optical measurement (0.025 μm graduation)
• Automatic/manual turret options and selectable turret models
• Expandable with CCD and software for image processing, metallography and network transmission
• Compact footprint, complies with international standards for laboratory and production testing
