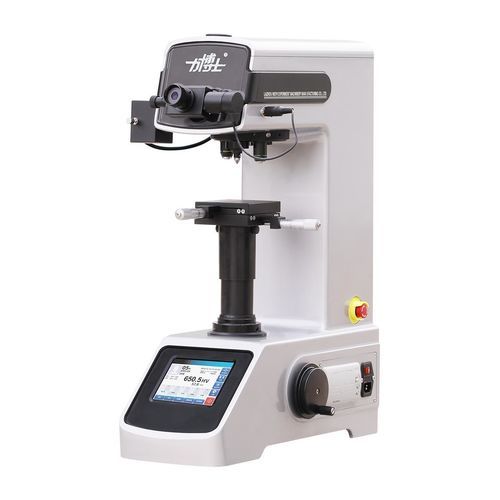

Vickers hardness tester HV series

benchtopglassfor ceramics

Product Overview
The HV-5/10/30/50TPTA series integrates mechanical, optical and computer subsystems for Vickers hardness testing. Models HV-5TPTA, HV-10TPTA, HV-30TPTA and HV-50TPTA cover test-force ranges from 1.961 N up to 490.3 N and are suitable for thin metal parts, foils, wires, coatings, nitrided layers and non-metallic materials such as glass, jewelry and ceramics. The instrument supports automated load cycles, manual micrometer-eyepiece indentation measurement, and multiple communication interfaces for data export and system integration.

Product Advantages

• Automation: automatic objective/indenter switching and automatic load-hold-unload sequences via motorized turret.
• Measurement and calculation: touch-screen input of indentation diagonal plus automatic hardness computation, counting and conversion routines.
• Data connectivity: built-in printer, RS‑232, Ethernet, USB and Bluetooth for numeric/character data transfer and integration with host software or MES.
• Optical system: dual optical channel with objective options (10×/20×/40×) and 10× eyepiece, measurement magnifications up to 400× depending on configuration.
• Multilingual operation: user interface supports multiple languages to facilitate use in laboratories and production environments.

Detailed specifications (table)
Product Model: HV-5TPTA / HV-10TPTA / HV-30TPTA / HV-50TPTA
Test force (HV-5TPTA): 1.961 N, 2.942 N, 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N (0.2 kgf, 0.3 kgf, 0.5 kgf, 1 kgf, 2 kgf, 2.5 kgf, 3 kgf, 5 kgf)
Ruler (HV-5TPTA): HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5
Test force (HV-10TPTA): 2.942 N, 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N, 98.07 N (0.3 kgf, 0.5 kgf, 1 kgf, 2 kgf, 2.5 kgf, 3 kgf, 5 kgf, 10 kgf)
Ruler (HV-10TPTA): HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10
Test force (HV-30TPTA): 4.903 N, 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N, 98.07 N, 196 N, 294.2 N (0.5 kgf, 1 kgf, 2 kgf, 2.5 kgf, 3 kgf, 5 kgf, 10 kgf, 20 kgf, 30 kgf)
Ruler (HV-30TPTA): HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30
Test force (HV-50TPTA): 9.807 N, 19.61 N, 24.52 N, 29.42 N, 49.03 N, 98.07 N, 196 N, 294.2 N, 490.3 N (1 kgf, 2 kgf, 2.5 kgf, 3 kgf, 5 kgf, 10 kgf, 20 kgf, 30 kgf, 50 kgf)
Ruler (HV-50TPTA): HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50
Load control: Automatic (loading/holding/unloading)
Dwell (hold) time: adjustable 0–60 s
Turret: Automatic turret
Maximum specimen height: 110 mm (200 mm with extension sleeve removed)
Distance from indenter center to machine wall: 130 mm
Stage lift: Manual
Optical system: objective lenses (10×/20×/40× variants), eyepiece 10×; total magnification up to 400× depending on configuration
Measurement resolution: 0.025 μm (table) / indication resolution up to 0.0625 μm in some modes
Test stage: XY coordinate stage 100 × 100 mm, travel 25 × 25 mm, resolution 0.01 mm
Illumination: 12 V / 20 W
Power supply: 220 V 50 Hz
External dimensions: 500 × 330 × 660 mm
Weight: 55 kg

Characteristics / technical specifications

• Series: HV-5TPTA, HV-10TPTA, HV-30TPTA, HV-50TPTA.
• Applicable materials: thin metal parts, foils, wires, electroplated coatings, nitrided layers, glass, jewelry, ceramics.
• Interfaces: Ethernet, Bluetooth, RS‑232, USB, built-in printer for data output and system integration.
• Automation: automatic turret, automatic loading/holding/unloading cycles.
• Measurement method: manual micrometer-eyepiece indentation measurement with touch-screen input and automatic hardness calculation.
• Optics: dual optical channel with selectable objectives; measurement/observation magnification and resolution depend on configuration.
• Standard load ranges and scales: supports HV scales from HV0.2 to HV50 according to model.
• Power and dimensions: 220 V 50 Hz; 500 × 330 × 660 mm; approx. 55 kg.
