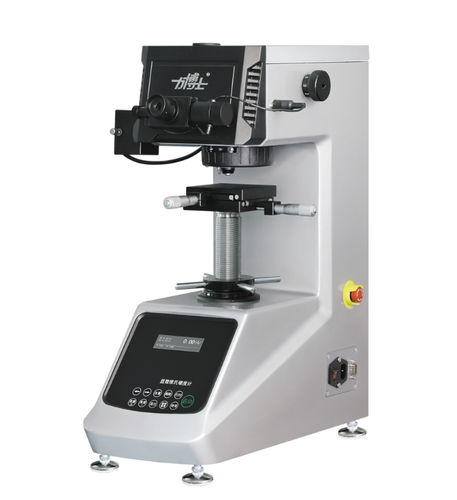

Knoop/Vickers hardness tester HVA-1000STA

micro Vickersbenchtopautomatic

Product overview
The HVA-1000STA is an entry-level micro-Vickers hardness tester designed for precision hardness measurement of small metal parts, thin sections, foils, electroplated and thermochemical layers, as well as non-metallic materials such as jewelry, ceramics and glass. Key characteristics include a digital direct-read display, automatic turret, precision XY stage and optional CCD image processing (Vickers/Knoop). Indentation alignment is performed with a micrometer eyepiece; load control and dwell time are automated for repeatable results. The instrument conforms to GB/T 4340.2, ISO 6507 and ASTM E92 standards.

Main technical parameters

• Model: HVA-1000STA
• Vickers scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
• Test forces: 0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807 N (equivalent to 10, 25, 50, 100, 200, 300, 500, 1000 gf)
• Load control: Automatic loading / holding / unloading; force selected via handwheel and shown on screen
• Dwell time: Adjustable 0–60 s (1 s increments)
• Test modes: HV / HK (Vickers / Knoop)
• Hardness range: 5–3000 HV (indication error 3–5% HV)
• Maximum specimen height: 110 mm (distance from indentation center to machine wall)
• Optical system: Objective 10× for observation, 40× for measurement; total magnification 100× (observe) / 400× (measure); graduation 0.025 μm; measurement range 0–200 μm
• XY stage: Table size 100 × 100 mm; stroke 25 × 25 mm; resolution 0.01 mm
• Light source: 12 V / 20 W, adjustable intensity
• Power supply / consumption: 220 V 50 Hz, 100 W
• Dimensions / Weight: 525 × 330 × 620 mm; 36 kg

Basic configuration

• Host: Vickers hardness tester — Quantity: 1 — Origin/Note: Taiwan
• Vickers indenter — Quantity: 1
• Objective lenses: 10×, 40× — Quantity: one each
• Accessory box — includes 10× micrometer eyepiece, cross-coordinate test table, leveling screws M10x25 (4), spirit level, hex keys (2.5 mm and 3 mm), Phillips screwdriver 5×75, flathead screwdriver 5×75
• Standard Vickers hardness block 700–800 HV1 — Quantity: 1
• Standard Vickers hardness block 400–600 HV0.2 — Quantity: 1
• Dust cover — Quantity: 1
• Fuse 2 A — Quantity: 2 (spare)
• Halogen bulb 12 V / 20 W — Quantity: 1 (spare)
• Power cord — Quantity: 1
• Certificate of conformity, instruction manual, packing list — Quantity: 1 each

Technical specifications

• Model: HVA-1000STA
• Brand / Manufacturer: LaiZhou Weiyi Experimental Machinery Manufacture Co., Ltd.
• Supported Vickers scales: HV0.01 to HV1
• Test forces: 0.098–9.807 N (10–1000 gf)
• Hardness measurement range: 5–3000 HV (indication error 3–5% HV)
• Optical magnification: Observation 100× (10× objective), Measurement 400× (40× objective); graduation 0.025 μm
• Indentation measurement range: 0–200 μm
• XY stage: 100 × 100 mm; stroke 25 × 25 mm; resolution 0.01 mm
• Maximum specimen height: 110 mm
• Light source: 12 V / 20 W, adjustable
• Power: 220 V 50 Hz, 100 W
• Dimensions / Weight: 525 × 330 × 620 mm / 36 kg
• Standards: GB/T 4340.2, ISO 6507, ASTM E92
