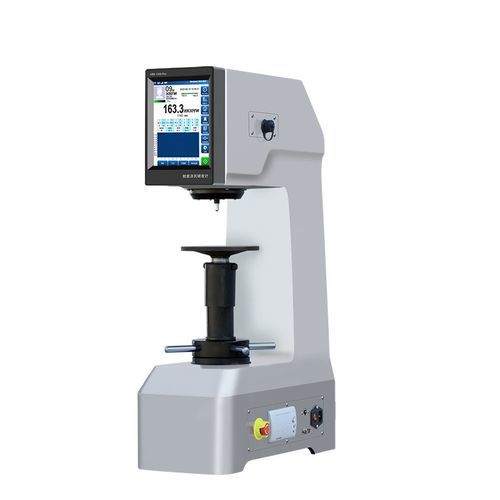

Rockwell hardness tester HRS-150S Pro

benchtopfor non-ferrous metalsmetal

Product Overview
The HRS-150S Pro Rockwell hardness tester is designed for measuring Rockwell hardness of hard metals, alloys, non-ferrous metals, alloy steels, tool steels, quenched steels, thin sheets, stainless steels, cast irons, powder metallurgy materials, copper and copper alloys, aluminum and aluminum alloys, and hard plastics. The instrument integrates an 8-inch high-definition touchscreen with an opto-electro-mechanical design and uses a precision stepper motor for automatic application, dwell and release of test forces. Hardness values are calculated automatically by the embedded software and displayed on the screen; the system can generate result curves for each test set. The unit includes a built-in printer and supports RS-232, Ethernet and USB interfaces for printing and exporting data. The touchscreen HMI provides clear icons for quick selection of indenter type, test force and dwell time, ensuring straightforward operation and repeatability.

Product Advantages

• Set hardness test range: define upper and lower limits to visually assess compliance (black = pass; red = fail).
• Load-process timeout monitoring: automatic stop of loading after a preset timeout if no specimen is present or start is pressed accidentally, protecting the equipment.
• Initial test force progress indicator: during manual operation, the initial force progress bar appears on contact to avoid excessive initial force.
• Three hardness conversion standards: supports Chinese, European and American standards; conversion values displayed alongside results.
• Multi-point test data analysis: real-time display of number of tests, highest/lowest values, average and standard deviation.
• Multi-point test line chart: real-time chart with optional hardness limits; vertical axis auto-adjusts if limits are not set.
• Network connectivity: Ethernet connection for cloud server access, remote sharing and historical data retrieval.
• Data upload: real-time and historical data upload via Bluetooth or Ethernet; configurable per point or per test set.
• Test data printing: built-in printer, Bluetooth printer support, or export to connected computer/printer.

Detailed Specifications
Scales: HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRLW, HRMW, HRPW, HRRW, HRSW, HRVW
Test force: 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N)
Load control: automatic application, holding and removal of test force
Display: 8-inch touchscreen
Hardness resolution: 0.1 HR
Dwell time range: 0–99 seconds
Maximum specimen height: 230 mm (protective cover removed; 140 mm before removal)
Distance from indenter center to machine wall: 165 mm
Data output: built-in printer, RS-232 (also Ethernet/USB as noted above)
System language: 12 languages
Included stands: large flat, small flat, V-shaped
Standards: GB/T 230, ISO 6508, ASTM E18
Host weight: 80 kg
Power supply: AC 220V / 50Hz
Dimensions (L×W×H): 515 × 238 × 790 mm

Basic Configuration (included items)

• Host: Hardness tester (origin: Taiwan)
• Accessory box (1 item)
• Diamond Rockwell indenter: 120° (1 item)
• Carbide ball indenter: Φ1.5875 mm (1 item)
• Steel ball: Φ1.5875 mm (1 item)
• Standard Rockwell hardness block: 80–85 HRA (1 block)
• Standard Rockwell hardness block: 85–100 HRBW (1 block)
• Standard Rockwell hardness block: 60–70 HRC (1 block)
• Standard Rockwell hardness block: 40–50 HRC (1 block)
• Standard Rockwell hardness block: 20–30 HRC (1 block)
• Hex key: 3 mm (1 item)
• Hex key: 2.5 mm (1 item)
• Printing paper (1 item)
• Fuse: 2A (2 items) – spare parts
• Spirit level (1 item)
• Large flat test stand (1 item)
• Small flat test stand (1 item)
• V-shaped test stand (1 item)
• Dust cover (1 item)
• Power cord (1 item)
• Certificate of Conformity (1)
• Instruction Manual (1)
• Packing list (1)

Features / Technical Summary

• Applicable materials: hard metals, alloys, non-ferrous metals, tool steels, quenched steels, thin sheets, stainless steels, cast irons, powder metallurgy, copper & aluminum alloys, hard plastics.
• Display & control: 8-inch HD touchscreen HMI.
• Loading system: precision stepper motor for automatic application, dwell and removal.
• Force options: 60, 100, 150 kgf.
• Resolution: 0.1 HR.
• Dwell time: 0–99 s (adjustable).
• Max specimen height: 230 mm (140 mm with protective cover installed).
• Interfaces: built-in printer, RS-232, Ethernet, USB, Bluetooth (data upload).
• Test data management: real-time charts, multi-point analysis, upper/lower limit judgment, networked history traceability.
• Standards: GB/T 230, ISO 6508, ASTM E18.
• System languages: supports 12 languages.
• Weight & dimensions: approx. 80 kg; 515 × 238 × 790 mm.
