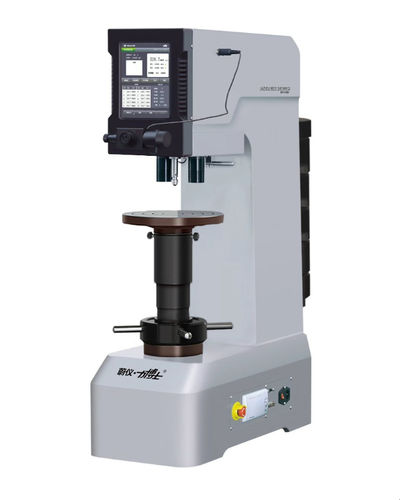

Brinell hardness tester HBS3000-212

benchtopdigitalEN-ISO 6506

Product Overview
The HBS3000-212 is a digital Brinell hardness tester designed for laboratory and workshop use. It uses a precision stepper-motor closed-loop control system combined with optical measurement to provide accurate test-force application across a wide range of forces. Indentation measurement is performed manually using the micrometer eyepiece. The instrument is suitable for cast iron, steel, nonferrous metals and selected nonmetallic materials and is intended for quality control, inspection and research applications.

Detailed specifications
Product model: HBS3000-212 Digital Brinell Hardness Tester, dual-objective model
Test forces: 612.9 N (62.5 kgf); 2452 N (250 kgf); 9800 N (1000 kgf)
Hardness range: 8–650 HBW
Loading method: Combined coding and loading
Reading microscope magnification: 20X, 40X
Test force holding time: 0–60 s
Indenter options: Φ10 mm, Φ5 mm, Φ2.5 mm spherical indenters
Micrometer drum minimum graduation: 0.001 mm
Maximum specimen height: 280 mm
Maximum distance from indenter center to machine body: 175 mm
Standards: GB/T 231.2; ISO 6506; ASTM E10
Power supply: AC 220V / 50Hz

Features / Technical Specifications

• Precision closed-loop control with stepper-motor drive for stable and repeatable test-force application
• Three selectable test forces covering 62.5 kgf, 250 kgf and 1000 kgf
• Hardness measurement range 8–650 HBW suitable for cast iron, steel and nonferrous metals
• Manual indentation measurement via micrometer eyepiece; microscope magnifications 20X and 40X
• Interchangeable spherical indenters: Φ10 mm, Φ5 mm, Φ2.5 mm
• Micrometer drum minimum graduation 0.001 mm for precise diameter readings
• Loading method: combined coding and loading; hold time adjustable 0–60 s
• Maximum specimen height 280 mm; max distance from indenter centre to machine body 175 mm
• Meets GB/T 231.2, ISO 6506 and ASTM E10 standards
• Power supply: AC 220V / 50Hz
