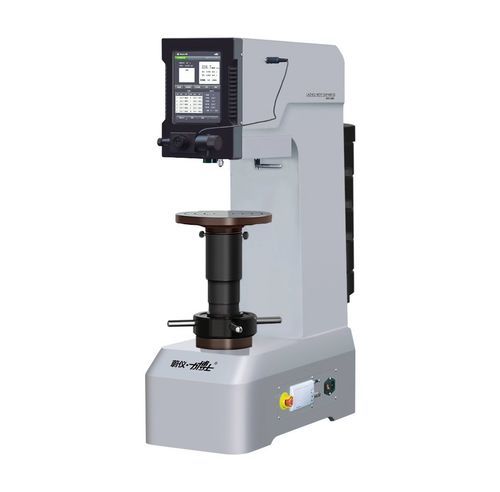

Brinell hardness tester HBS3000-210

benchtopfor machineryfor measurement instruments

Product Overview
The HBS3000-210 is a digital Brinell hardness tester designed for hardness measurement of cast iron, steels, nonferrous metals and nonmetallic materials. It features a precision stepper-motor closed-loop force control and wide selectable test forces (1839 N / 187.5 kgf, 7355 N / 750 kgf, 29400 N / 3000 kgf) to cover testing from soft metals to cemented carbides. Indentation measurement is performed manually using a micrometer eyepiece. The instrument integrates optical, mechanical and electrical systems and is suitable for factory workshops, quality control laboratories and research institutions.

Detailed specifications
Product model: HBS3000-210 digital Brinell hardness tester; single-objective model

• Test forces: 1839 N (187.5 kgf), 7355 N (750 kgf), 29400 N (3000 kgf)
• Hardness range: 8–650 HBW
• Loading method: combined coding and loading
• Reading microscope magnification: 20X
• Force holding time: adjustable 0–60 seconds
• Indenters: Φ10 mm, Φ5 mm, Φ2.5 mm spherical indenters
• Micrometer drum minimum graduation: 0.001 mm
• Maximum specimen height: 320 mm
• Maximum distance from indenter center to machine body: 175 mm
• Standards: GB/T 231.2; ISO 6506; ASTM E10
• Power supply: AC 220V / 50Hz

Applications and key features

• Closed-loop force control via precision stepper motor for stable and accurate test force application
• Wide force range suitable for testing soft metals to hard cemented carbides
• Optical measurement combined with manual micrometer eyepiece reading for indentation diameter measurement
• Integrated optical, mechanical and electrical design for industrial and laboratory use
• Compliant with international standards ISO 6506 and ASTM E10 and national standard GB/T 231.2
