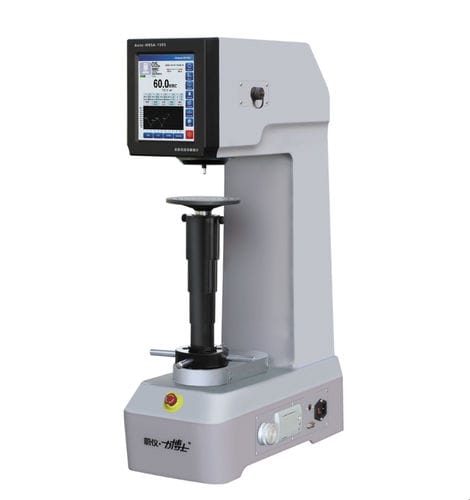

Rockwell hardness tester Auto-HRSA-150S

benchtopfor machineryfor test benches

Product Overview
The Auto-HRSA-150S is a high-precision, fully automated Rockwell hardness tester integrating optical, electronic and mechanical systems with an 8-inch touchscreen HMI. It performs complete Rockwell and superficial Rockwell test cycles automatically and is designed for metallurgy, machinery, automotive, mold manufacturing, heat treatment, quality inspection bodies and research institutions. It is intended as standard equipment for material hardness testing and quality control.

Product Advantages

• One-Click Test: Single-button operation raises the worktable to the optimal position and starts automatic testing; after the test the table descends a preset distance for fast point switching, improving testing efficiency and success rate.
• Two worktable lifting modes: manual handwheel lifting and electric actuator lifting (manual via handwheel, electric via knob rotation).
• Stepless Variable-Speed Lifting Worktable: Manual knob rotation controls lifting/lowering speed steplessly; rotation angle determines speed and can be preset.
• Set Hardness Test Range: Upper and lower test limits can be set; results indicate pass (black) or fail (red) for intuitive assessment.
• Load Process Time Monitoring: No-load timeout protection halts loading if no specimen is present or start is pressed accidentally to protect the instrument.
• Initial Test Force Progress Bar: In manual mode, when the indenter contacts the specimen the screen displays an initial test force progress bar to prevent excessive initial force and reduce errors.
• Three Hardness Conversion Standards: Built-in Chinese, European and American conversion standards; converted hardness values display alongside raw results.
• Multi-point Test Data Analysis: Real-time analysis for multi-point tests including count, max/min, mean and standard deviation to improve accuracy and efficiency.
• Multi-point Test Line Chart: Real-time polyline display for multi-point testing with adjustable hardness limits and automatic vertical-axis scaling when limits are not set.
• Networking Capability: Ethernet connection to cloud server for remote sharing and historical data retrieval to assist in defect identification and process correction.
• Real-time and Historical Data Upload: Upload via Bluetooth to smartphone or via Ethernet to computer; per-point or per-group upload selectable.
• Test Data Printing: Print via built-in printer or Bluetooth printer, or export to computer for printing.

Detailed Specifications
Scales: Standard Rockwell: HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRLW, HRMW, HRPW, HRRW, HRSW, HRVW; Superficial Rockwell: HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15WW, HR30WW, HR45WW, HR15XW, HR30XW, HR45XW, HR15YW, HR30YW, HR45YW.
Test force: Standard Rockwell: 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N); Superficial Rockwell: 15 kgf (147.1 N), 30 kgf (294.2 N), 45 kgf (441.3 N).
Load control: Automatic application, dwell and removal of test force.
Worktable lifting: Manual handwheel and electric lifting.
Display: 8-inch touchscreen.
Hardness resolution: 0.1 HR.
Dwell time: 0–99 seconds.
Maximum specimen height: 320 mm (protective cover must be removed; remove 225 mm first).
Distance from indenter center to machine wall: 200 mm.
Data output: Built-in printer and RS232 interface; Bluetooth and Ethernet supported.
Hardness conversion standards: ASTM E140-12BE, ISO 18265-2013, GB/T1172.
System languages: 12 languages.
Included test stands: large flat, small flat and V-shaped stands.
Host weight: 105 kg.
Power supply: AC 220V/50Hz.
Dimensions (L × W × H): 580 × 270 × 870 mm.
Standards: GB/T 230, ISO 6508, ASTM E18.

Basic Configuration (included items)

• Host: Digital Fully Automatic Rockwell Hardness Tester, model Auto-HRSA-150S, origin: Taiwan, quantity: 1.
• Attachment box: Diamond Rockwell indenter, quantity: 1.
• Carbide ball indenters and carbide steel spare balls: φ1.5875 mm (carbide indenter 1 piece; carbide steel spare 2 pieces), φ3.175 mm (carbide indenter 1; spare 2), φ6.35 mm (carbide indenter 1; spare 2), φ12.7 mm (carbide indenter 1; spare 2).
• Standard Rockwell hardness blocks for calibration: 80–85 HRA (1), 85–100 HRBW (1), 60–70 HRC (1), 40–50 HRC (1), 20–30 HRC (1).
• Superficial Rockwell hardness blocks: 89–91 HR15N (1), 42–54 HR30N (1), 74–80 HR30N (1), 70–82 HR30TW (1).
• Hex keys: 3 mm, 2.5 mm, 2 mm, 1.5 mm.
• Printer paper: 1; Fuses: 2A, quantity 2 (spares); Spirit level: 1.
• Test stands: large flat (1), small flat (1), V-shaped stand (1); Dust cover (1); Power cord (1).
• Documents: Certificate of Conformity (1), Instruction Manual (1), Packing List (1).

Technical specifications

• Model: Auto-HRSA-150S
• Measurement scales: Multiple Rockwell and superficial Rockwell scales (see Detailed Specifications)
• Test forces: Standard and superficial ranges from 15 kgf to 150 kgf
• Display: 8-inch touchscreen
• Resolution: 0.1 HR
• Data output: Built-in printer, RS232; Bluetooth and Ethernet upload supported
• Worktable lifting: Manual and electric (stepless control via knob)
• Max specimen height: 320 mm (with protective cover removed)
• Weight: 105 kg
• Power: AC 220V/50Hz
• Dimensions: 580 × 270 × 870 mm
• Standards: GB/T 230, ISO 6508, ASTM E18; hardness conversion: ASTM E140-12BE, ISO 18265-2013, GB/T1172
