UV LED NCSU434B (308nm)
square

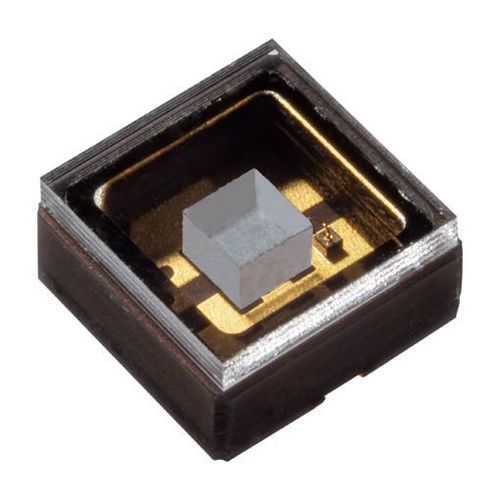

UV LED - NCSU434B (308nm) - NICHIA - square
UV LED - NCSU434B (308nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Electrical power

2.85 W

Description

Overview
  • Package size: 3.5×3.5×1.72 mm
  • Emission: UV-B (UVB)
  • Nominal wavelength: 308 nm
  • Package type: SMD


Applications
  • Curing
  • Agriculture


Product Information
  • Production status: In production (Recommended model)
  • Start of sales: March 2024
  • Packaging quantity: 1000 per reel


Downloads (available data files)
  • Specifications: NCSU434B(T)-E(7052B)U308bcx.pdf
  • Ray Data: NCSU434B(U308bc)_LightTools.zip
  • Ray Data: NCSU434B(U308bc)_Zemax.zip


Application Notes
  • Handling Precautions for the Nichia UV LEDs
  • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
  • Thermal Design Considerations for the SMD Type UV LEDs


Technical specifications
  • Model: NCSU434B
  • Package size: 3.5 × 3.5 × 1.72 mm
  • Color / Type: UV-B (UVB)
  • Nominal wavelength: 308 nm
  • Production status: In production (Recommended model)
  • Start of sales: March 2024
  • Packaging quantity: 1000 per reel
  • Available documents: Product specification (PDF) and ray/near-field data (ZIP)

Catalogs

No catalogs are available for this product.

See all of NICHIA‘s catalogs
