UV LED NVSU233B (395nm)
square

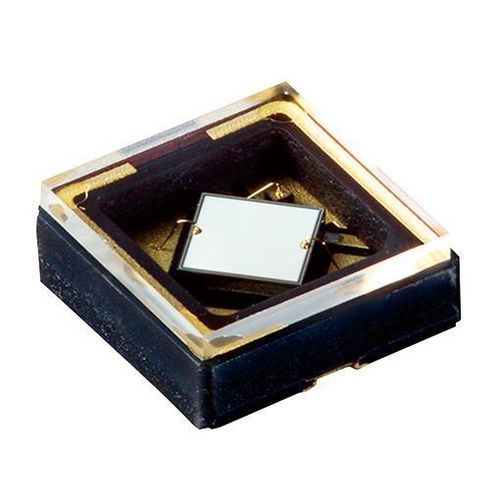

UV LED - NVSU233B (395nm) - NICHIA - square
UV LED - NVSU233B (395nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Electrical power

5.88 W

Description

Product
NVSU233B (395 nm) is an SMD UV‑A LED designed for ultraviolet applications. Package size: 3.5×3.5×1.23 mm. Emission: UVA (395 nm).

Applications
  • Lithography
  • Curing


Product Version
  • Previous: -
  • Current: NVSU233B (395 nm)
  • Next: -


Product Information
  • Production Status: In production (Recommended model)
  • Start of Sales: 2021/11
  • Packaging Quantity: 1400 per reel
  • Lens manufacturer: ASAHI RUBBER INC.


Downloads - LED technical data
  • Specifications: NVSU233B(T)-E(4890F)U365x U385x U395x.pdf
  • Ray Data: NVSU233B(U395)_LightTools.zip
  • Ray Data: NVSU233B(U395)_Zemax.zip


Application Notes
  • Handling Precautions for the Nichia UV LEDs
  • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
  • Thermal Design Considerations for the SMD Type UV LEDs


Technical specifications
  • Model: NVSU233B
  • Package dimensions: 3.5 × 3.5 × 1.23 mm
  • Color / Emission region: UVA (395 nm)
  • Production status: In production (Recommended model)
  • Start of sales: 2021/11
  • Packaging quantity: 1400 per reel
  • Relevant specification file: NVSU233B(T)-E(4890F)U365x U385x U395x.pdf
  • Lens manufacturer: ASAHI RUBBER INC.

Catalogs

No catalogs are available for this product.

See all of NICHIA‘s catalogs
