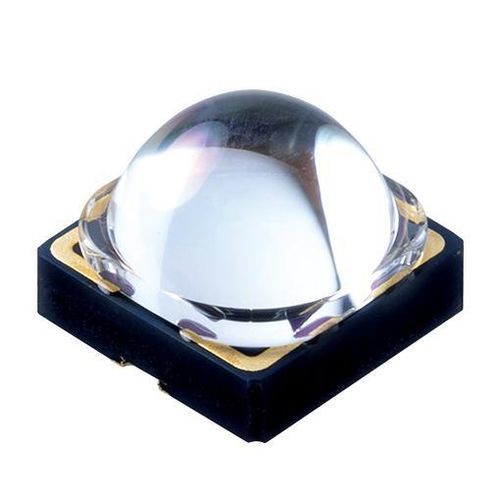

UV LED NVSU233C-D4 (365nm)

squarefor LEDs

Overview

• Package dimensions: 3.5 × 3.5 × 2.73 mm
• Emission: UVA (365 nm)
• Package type: SMD (surface-mount)

Applications / Icons

• Lithography
• Curing (UV curing / polymerization)

Product Version
Previous： -
Current： NVSU233C-D4 (365nm)
Next： -

Product Information

• Production status: In production (Recommended model)
• Start of sales: April 2022
• Packaging quantity: 800 per reel

Downloads (available files listed)

• Specification file: NVSU233C(T)-D4-E(6608B)U365x U385x U395x U405x.pdf
• Ray data (LightTools): NVSU233C-D4(U365)_LightTools.zip
• Ray data (Zemax): NVSU233C-D4(U365)_Zemax.zip

Application Notes (titles)

• Handling Precautions for the Nichia UV LEDs
• The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs

Features / Technical specifications

• Model: NVSU233C-D4
• Full display name: NVSU233C-D4 (365nm)
• Package dimensions (mm): 3.5 × 3.5 × 2.73
• Emission color / wavelength: UVA (365 nm)
• Package form: SMD (surface mount)
• Production status: In production
• Start of sales: April 2022
• Packaging quantity: 800 per reel
• Available downloads: product specification (PDF), ray data (LightTools/Zemax)
