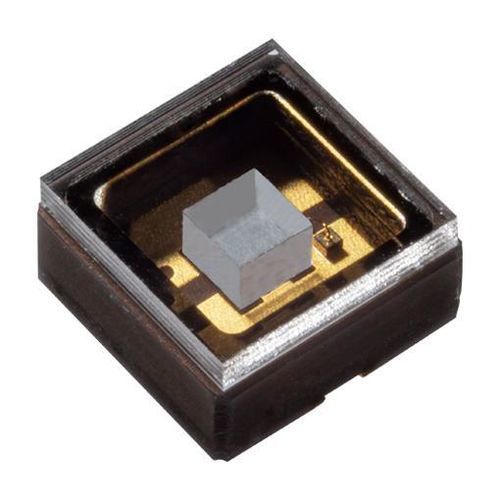

UV LED NCSU434B (330nm)

square

Overview
SMD UVA LED in a 3.5×3.5×1.72 mm package. Nominal wavelength 330 nm. Typical application: curing.

Product Version
Previous: -
Current: NCSU434B (330nm)
Next: -

Product Information

• Production status: In production (Recommended model)
• Start of sales: 2024/01
• Packaging quantity: 1000 per reel

Downloads - LED technical data

• Specifications: NCSU434B(T)-E(7031C)U330x.pdf

Ray Data

• NCSU434B(U330)_LightTools.zip
• NCSU434B(U330)_Zemax.zip

Application Notes

• Handling Precautions for the Nichia UV LEDs
• The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs

Technical specifications

• Model: NCSU434B
• Wavelength (nominal): 330 nm
• Package size: 3.5 × 3.5 × 1.72 mm
• Color: UVA
• Production status: In production (Recommended model)
• Start of sales: 2024/01
• Packaging quantity: 1000 per reel
• Specification file: NCSU434B(T)-E(7031C)U330x.pdf
• Typical application: Curing
