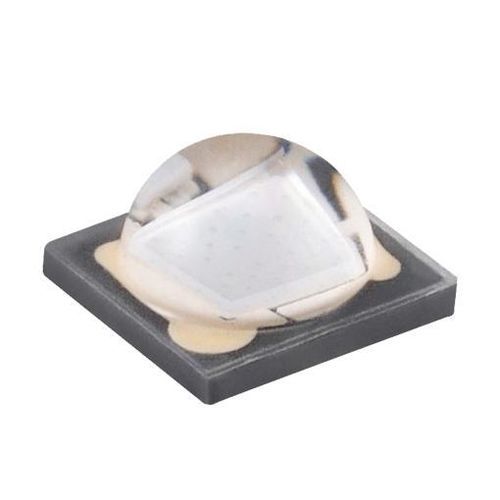

UV LED NVSU119C (375nm)square
Add to favorites
Compare this product
Characteristics
- Spectrum
- UV
- Configuration
- square
- Electrical power
5.32 W
Description
Product Overview
Product Version
Product Information
Downloads (listed files)
Application Notes / Process & Design Documents (examples)
Technical specifications
- Type: UVA LED (ultraviolet A)
- Package size: 3.5×3.5×2 mm (SMD)
- Wavelength: 375 nm (UVA)
- Typical application: photocatalyst / UV processes
Product Version
- Model: NVSU119C (375nm)
- Previous: -
- Next: -
Product Information
- Production status: In production (Older model)
- Start of sales: November 2021
- Packaging quantity: 3500 per reel
Downloads (listed files)
- NVSU119CT-E(4011I)U375x U385x U395x U405x.pdf (Specification)
- Thermal Design of NVSU119C(U375, U385, U395, U405) LEDs.pdf (Thermal design document)
- NVSU119C(U375)_LightTools.zip (Ray data)
- NVSU119C(U375)_Zemax.zip (Ray data)
Application Notes / Process & Design Documents (examples)
- Handling Precautions for the Nichia UV LEDs (application/process guideline)
- The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs (safety guideline)
Technical specifications
- Model: NVSU119C
- Full product title: NVSU119C (375 nm)
- Package size: 3.5 × 3.5 × 2 mm (SMD)
- Color / Wavelength band: UVA (375 nm)
- Production status: In production (Older model)
- Start of sales: November 2021
- Packaging quantity: 3500 per reel
- Available technical documents: product specification PDF, thermal design PDF, ray data (LightTools / Zemax)
Catalogs
No catalogs are available for this product.
