Ultraviolet LED NCSU035D (405nm)
square

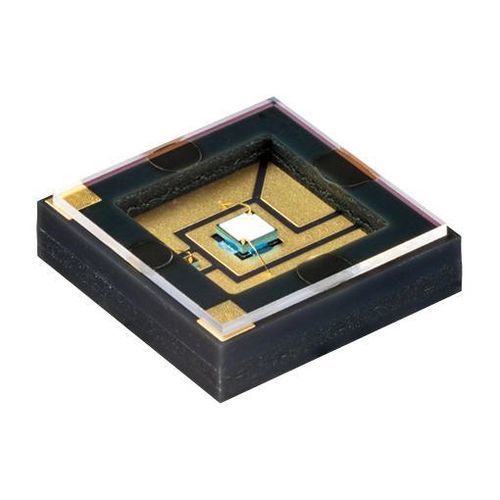

Ultraviolet LED - NCSU035D (405nm) - NICHIA - square
Ultraviolet LED - NCSU035D (405nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
ultraviolet
Configuration
square
Electrical power

2.85 W

Description

Product
  • Type: SMD UVA LED
  • Model: NCSU035D (405 nm)


Overview
  • Package size: 6.8 × 6.8 × 1.9 mm
  • Emission: 405 nm (UVA)


Product information
  • Production status: In production (older model)
  • Start of sales: January 2022
  • Packaging: 500 units per reel


Product version
  • Current: NCSU035D (405 nm)
  • Previous: —
  • Next: —


Downloads
  • Datasheet: NCSU035D(T)-E(6523A).pdf
  • Ray data: NCSU035D_LightTools.zip, NCSU035D_Zemax.zip


Application notes / Technical documents
  • Handling precautions for Nichia UV LEDs (PDF)
  • Thermal design of NCSU03xD (U365, U385, U405) LEDs (PDF)


Technical specifications
  • Model: NCSU035D
  • Wavelength / Emission: 405 nm (UVA)
  • Package size: 6.8 × 6.8 × 1.9 mm
  • Production status: In production (older model)
  • Start of sales: January 2022
  • Packaging quantity: 500 units per reel
  • Available files: Datasheet NCSU035D(T)-E(6523A).pdf; ray data (LightTools / Zemax)

Catalogs

No catalogs are available for this product.

See all of NICHIA‘s catalogs
