Ultraviolet LED NSSU100C (365nm)
rectangularfor reels

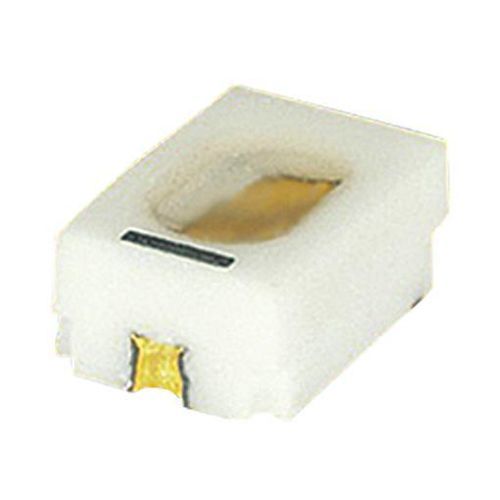

Ultraviolet LED - NSSU100C (365nm) - NICHIA - rectangular / for reels
Ultraviolet LED - NSSU100C (365nm) - NICHIA - rectangular / for reels
Add to favorites
Compare this product

Characteristics

Spectrum
ultraviolet
Configuration
rectangular
Product applications
for reels
Electrical power

0.1 W

Description

Basic Information
  • Package size: 3 × 2 × 1.2 mm
  • Color / Wavelength: UVA, 365 nm
  • Package type: SMD


Product Version
  • Previous: -
  • Current: NSSU100C (365nm)
  • Next: -


Product Information
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging quantity: 2500 per reel
  • Typical applications: UV curing, fluorescence excitation, inspection and detection systems, counterfeit detection; verify suitability with datasheet


Downloads - LED technical data (available files listed)
  • NSSU100CT-E(2757I)Improvement.pdf
  • NSSU100CT-C(3553D)Improvement.pdf


Ray Data (available files listed)
  • NSSU100C(New_Lot)_LightTools.zip
  • NSSU100C(New_Lot)_Zemax.zip


Application Notes (available files listed)
  • Handling Precautions for the Nichia UV LEDs
  • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
  • BP-CS241421-1-C_Thermal Design Considerations for the SMD Type UV LEDs.pdf


Technical specifications
  • Model (commercial designation): NSSU100C
  • Nominal wavelength: 365 nm (UVA)
  • Package size: 3 × 2 × 1.2 mm
  • Color / spectral category: UVA
  • Packaging unit: 2500 per reel
  • Production status: In production (Older model)
  • Available technical documents: product specification PDFs, ray data archives (LightTools/Zemax), application and thermal design notes
