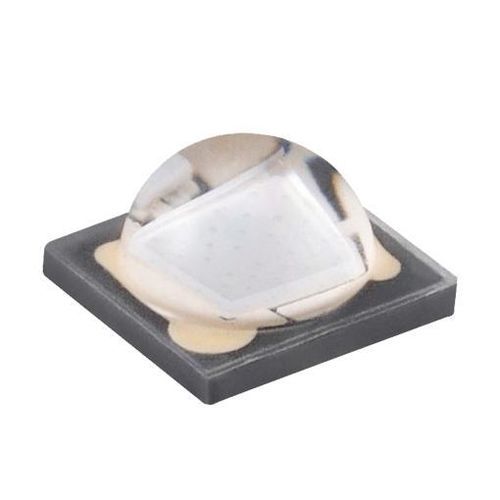

Ultraviolet LED NVSU119C (395nm)

square

Overview
Package size: 3.5×3.5×2 mm
Color: UVA

Product Version
Previous: -
Current: NVSU119C (395 nm)
Next: -

Product Information

• Production status: In production (Older model)
• Start of sales: November 2021
• Packaging quantity: 3500 per reel

Downloads - LED technical data

• Specifications PDF: NVSU119CT-E(4011I)U375x U385x U395x U405x.pdf

Ray Data

• NVSU119C(U395)_LightTools.zip
• NVSU119C(U395)_Zemax.zip

Application Notes

• Handling Precautions for the Nichia UV LEDs (PDF)
• The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs (PDF)
• Thermal Design of NVSU119C(U375, U385, U395, U405) LEDs (PDF)
• Thermal Design Considerations for the SMD Type UV LEDs (PDF)

Technical Specifications

• Model: NVSU119C
• Nominal wavelength: 395 nm (UVA)
• Package size: 3.5 × 3.5 × 2 mm
• Package type: SMD
• Production status: In production (Older model)
• Start of sales: November 2021
• Packaging quantity: 3500 per reel
• Relevant specification file: NVSU119CT-E(4011I)U375x U385x U395x U405x.pdf
