UV LED NVSU233C-D4 (405nm)
square

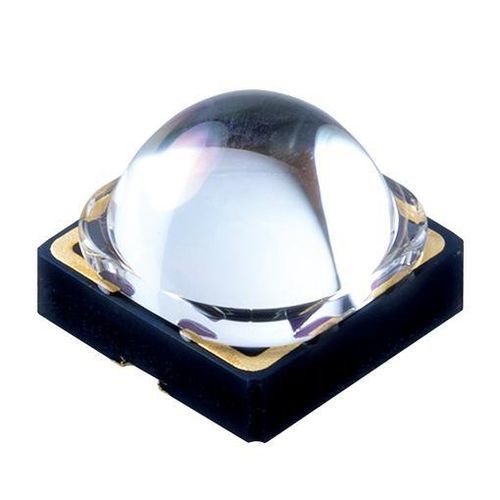

UV LED - NVSU233C-D4 (405nm) - NICHIA - square
UV LED - NVSU233C-D4 (405nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Electrical power

5.88 W

Description

Product overview
UVA SMD LED NVSU233C-D4 (405 nm) in a compact 3.5×3.5×2.73 mm package. Recommended production model for UV-A applications such as lithography and UV curing.

Key information
  • Package size: 3.5×3.5×2.73 mm
  • Emission wavelength / color: 405 nm / UVA
  • Mounting type: SMD
  • Production status: In production (Recommended model)
  • Start of sales: April 2022
  • Packaging quantity: 800 per reel


Applications / Typical uses
  • Lithography
  • Curing


Product version
  • Previous: -
  • Current: NVSU233C-D4 (405nm)
  • Next: -


Downloads (filenames)
Specifications
  • NVSU233C(T)-D4-E(6608B)U365x U385x U395x U405x.pdf


Ray Data
  • NVSU233C-D4(U405)_LightTools.zip
  • NVSU233C-D4(U405)_Zemax.zip


Application Notes
  • Handling Precautions for the Nichia UV LEDs
  • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
  • Thermal Design Considerations for the SMD Type UV LEDs


Technical specifications
  • Model: NVSU233C-D4
  • Commercial name: NVSU233C-D4 (405nm)
  • Emission wavelength / color: 405 nm / UVA
  • Package size: 3.5 × 3.5 × 2.73 mm
  • Production status: In production (Recommended model)
  • Start of sales: April 2022
  • Packaging quantity: 800 per reel
  • Typical applications: Lithography, Curing
  • Available specification document: NVSU233C(T)-D4-E(6608B)U365x U385x U395x U405x.pdf
  • Related application notes: Handling precautions and thermal design guidance (see application notes list)

Catalogs

No catalogs are available for this product.
