UV LED NCSU034D (385nm)
square

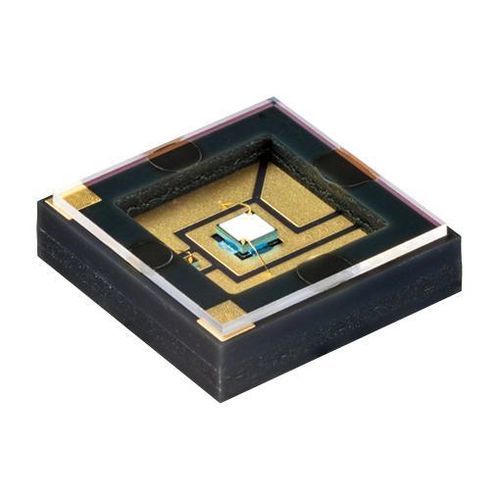

UV LED - NCSU034D (385nm) - NICHIA - square
UV LED - NCSU034D (385nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Electrical power

3.22 W

Description

Overview
  • Package size: 6.8×6.8×1.9 mm
  • Color / wavelength band: UVA (385 nm)
  • Device type: SMD LED


Product Version
  • Previous: -
  • Current: NCSU034D (385nm)
  • Next: -


Product Information
  • Production status: Discontinued
  • Start of sales: April 2022
  • Packaging quantity: 500 per reel


Downloads (listed on page)
  • Specifications: NCSU034D(T)-E(6520A).pdf
  • Ray data: NCSU034D_LightTools.zip, NCSU034D_Zemax.zip
  • SPICE data: none listed
  • CAD (3D): not provided on the page


Application Notes / Technical Documents (listed)
  • Handling Precautions for the Nichia UV LEDs
  • The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs
  • Thermal Design of NCSU03xD (U365, U385, U405) LEDs
  • Thermal Design Considerations for the SMD Type UV LEDs


Technical specifications
  • Model: NCSU034D
  • Typical wavelength (center): 385 nm
  • Package size (L×W×H): 6.8 × 6.8 × 1.9 mm
  • Color / Application band: UVA
  • Production status: Discontinued
  • Start of sales: April 2022
  • Packaging quantity: 500 per reel
  • Available specification file: NCSU034D(T)-E(6520A).pdf
  • Relevant family thermal-design document: Thermal Design of NCSU03xD (U365, U385, U405) LEDs
