UV LED NCSU434A (280nm)
square

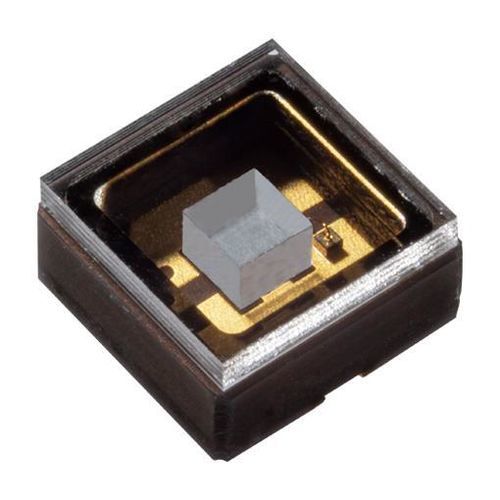

UV LED - NCSU434A (280nm) - NICHIA - square
UV LED - NCSU434A (280nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Electrical power

0.94 W

Description

Overview
  • Package size: 3.5 × 3.5 × 1.72 mm
  • Emission: UVC (280 nm)


Applications / Icons
  • Disinfection
  • Curing


Product Version
  • Current: NCSU434A (280nm)
  • Previous: -
  • Next: -


Product Information
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging quantity: 1000 per reel


Downloads (listed on page)
  • LED technical data: NCSU434A(T)-E(6218D).pdf
  • Ray Data: NCSU434A(U280)_LightTools.zip
  • Ray Data: NCSU434A(U280)_Zemax.zip
  • Application Notes - Process: Handling Precautions for the Nichia UV LEDs.pdf
  • Application Notes - Process: The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs.pdf
  • Application Notes - Design: Thermal Design of NCSU434A(U280) LEDs.pdf
  • Application Notes - Design: Thermal Design Considerations for the SMD Type UV LEDs.pdf


Notes
  • CAD (3D) data: indicated as available but requires contacting manufacturer (no CAD file link provided on page)
  • SPICE Data: none listed


Characteristics / Technical specifications
  • Model: NCSU434A (280 nm)
  • Package size: 3.5 × 3.5 × 1.72 mm
  • Emission color / wavelength band: UVC (280 nm)
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging quantity: 1000 per reel
  • Available technical documents: product specification PDF and product-specific thermal design PDF (see Downloads)
  • Available ray data: LightTools and Zemax archives
  • Primary applications indicated: disinfection, curing

Catalogs

No catalogs are available for this product.

See all of NICHIA‘s catalogs
