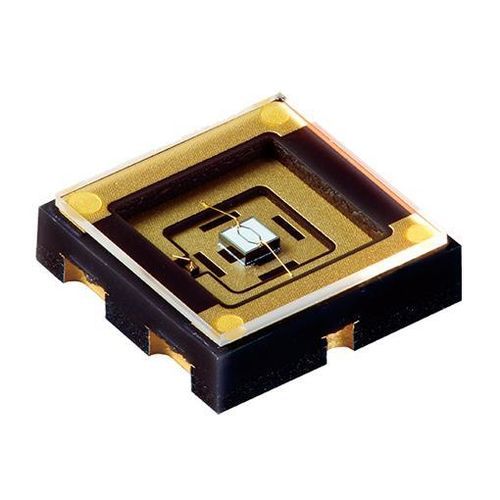

UV LED NCSU034C (385nm)

square

Product Overview
Compact UVA SMD LED with nominal peak wavelength 385 nm. Package size: 6.8×6.8×1.9 mm. Color: UVA.

Product Information

• Production status: In production (Older model)
• Start of sales: October 2021
• Packaging quantity: 500 units per reel
• Lens manufacturer: ASAHI RUBBER INC.

Downloads (examples)

• LED technical data: NCSU034C(T)-E(5034C).pdf
• Optical data: NCSU034C_LightTools.zip, NCSU034C_Zemax.zip
• Application notes: UV LED safety guidance; thermal design for NCSU03xC series; SMD UV LED heat dissipation

Packaging & Images
Main display image filename: NCSU033C.png.

Specifications

• Model: NCSU034C
• Package size: 6.8 × 6.8 × 1.9 mm
• Peak emission: 385 nm (UVA)
• Color category: UVA
• Production status: In production (Older model)
• Start of sales: October 2021
• Packaging: 500 units per reel
• Lens manufacturer: ASAHI RUBBER INC.
• Available technical downloads: datasheet, optical and thermal resources
