UV LED NCSU334B (280nm)
square

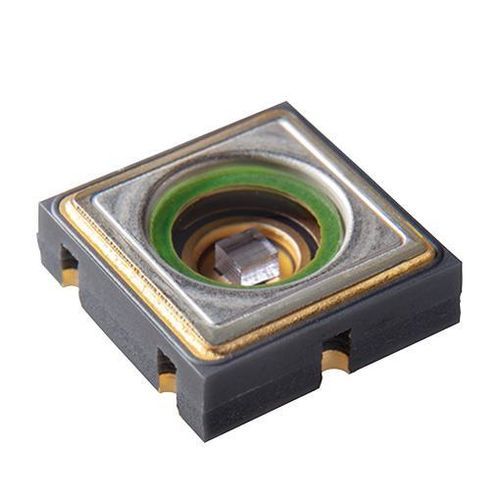

UV LED - NCSU334B (280nm) - NICHIA - square
UV LED - NCSU334B (280nm) - NICHIA - square
Add to favorites
Compare this product

Characteristics

Spectrum
UV
Configuration
square
Electrical power

3.49 W

Description

Overview
  • UVC LED targeted for UV-C applications (e.g. disinfection, curing).
  • Package size: 6.8×6.8×2.1 mm.
  • Emission wavelength: 280 nm (UVC).


Applications / Features
  • Disinfection and sterilization
  • Curing and other UV processes


Product Version
  • Previous: -
  • Current: NCSU334B (280nm)
  • Next: -


Product Information
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging quantity: 500 per reel


Downloads
  • Specifications: NCSU334B(T)-E(6154C).pdf
  • Ray Data: NCSU334B(U280)_LightTools.zip
  • Ray Data: NCSU334B(U280)_Zemax.zip
  • Handling: Handling Precautions for the Nichia UV LEDs.pdf
  • Safety: The Dangers of Ultraviolet Rays and Handling Precautions for UV LEDs.pdf
  • Design: Thermal Design of NCSU334B(U280) LEDs.pdf
  • Design: Thermal Design Considerations for the SMD Type UV LEDs.pdf


Technical specifications
  • Model: NCSU334B
  • Full product title: NCSU334B (280nm)
  • Package size: 6.8×6.8×2.1 mm
  • Color / Emission: UVC (280 nm)
  • Production status: In production (Older model)
  • Start of sales: October 2021
  • Packaging quantity: 500 per reel
